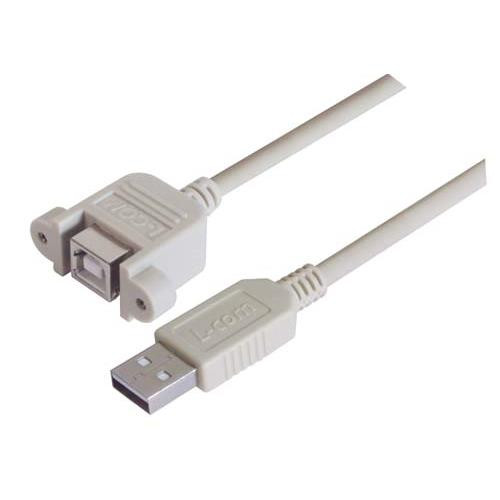

USB Type A Coupler, Female Bulkhead/Type A Male w/Ground Wire, 3.0M

This version adds a ground wire giving the user the option to electrically ground the USB female connector to their panel or enclosure. The #6 spade lug easily attaches to a screw or similar hardware. These USB 2.0 panel mount cables are perfect for use inside a box or enclosure. The USB Type A female side is flange-style panel mountable with an alternative, smaller body compared to the popular ECF504 series.

This makes it a nice fit in applications with limited space. The molded panel mountable USB construction is rugged and robust, using 20 AWG power conductors and a 28 AWG twisted pair all under a double shield for maximum EMI resistance. Each assembly includes two 4-40 x 3/8" Phillips pan head mounting screws.

Features

• External ground wire allows an electrical connection between connector shell and panel/enclosure
• Allows USB cables to be passed through panels or enclosures
• Mounting hardware included
• 30 micro inch gold plated contacts provide reliable connections with repeated mating cycles
• Available in lengths of 0.3, 0.5, 0.75, 1, 2, and 3 meters. Color is light gray

Application

• PC Peripheral Interconnects
• Test and Measurement
• Data Acquisition
• Portable Data Storage
• Printer Interface

Downloads:

• 2D Drawing (.pdf)
• 3D CAD Model (.step)
