Pressure Sensor, 0-200kPa, Gauge, Compensated, with cap 16.8mm diameter
Pressure Sensor, 0-200kPa, Gauge, Compensated, with cap 16.8mm diameter

Pressure Sensor, 0-200kPa, Gauge, Compensated, with cap 16.8mm diameter

$40.39
$38.37
{"without_tax":{"formatted":"$38.37","value":38.37,"currency":"USD"},"tax_label":"Tax","rrp_without_tax":{"formatted":"$40.39","value":40.39,"currency":"USD"},"saved":{"formatted":"$2.02","value":2.02,"currency":"USD"}}
(You save 5.00% )
SKU: PS783-I07GL1
Lead Time (Days): 42
Weight: 0.018000 LBS
Country of Origin: CN
Schedule B: 9026204000
ECCN: EAR99

Call (727) 345-3144 for Availability

Description

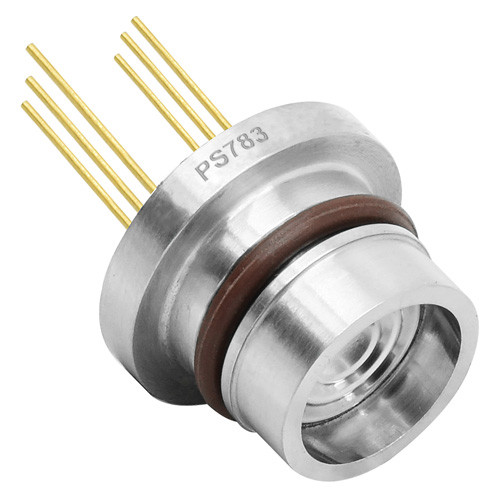

PS783-I07GL1 is a highly stable and reliable piezo-resistive pressure sensor with wide temperature compensation and zero correction. Optimized for middle to high pressures, the PS783-I07GL1 contains a highly stable silicon die, stainless steel 316L housing with diameter 12.6 mm. The measured pressure is transmitted onto the silicon die through the 316L diaphragm and inner media. This transforms the measured pressure into an electrical signal.

Features

  • 12.6mm compact size
  • Isolated construction, enable to measure various fluid media
  • Long-term stability ±0.1%FS/year
  • Pressure range: 0-200kPa
  • Wide temperature compensation range

Application

  • Aviation and navigation systems
  • Industrial process control
  • Level measurements
  • Cooling equipment and air conditioning systems
  • Gas and liquid pressure measurements
