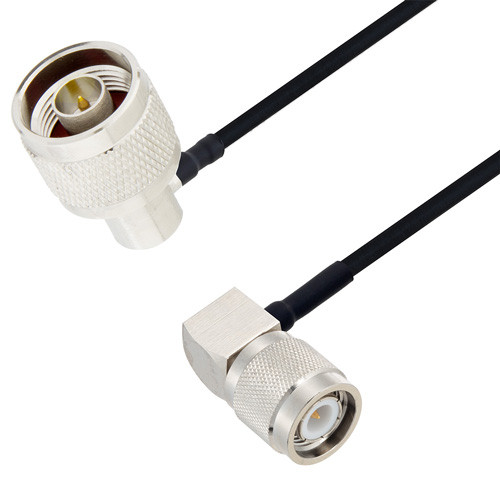

N Male Right Angle to TNC Male Right Angle Cable Assembly using LC085TBJ Coax, 6 FT

These high-quality RF coax cable assemblies can be used for telecom, military / defense, laboratory test & measurement, industrial / commercial and many other applications. These RF coaxial cable assemblies are built with right angle N connection on one end and right angle TNC connection on the other. This right angle N to right angle TNC cable from L-com has a male to male gender combination. This N male to TNC male coaxial assembly part number LCCA30647-FT6 can also be known as right angle N plug to right angle TNC plug cable assembly when using alternate gender names.

N plug to TNC plug cable assembly LCCA30647-FT6 is manufactured with a formable coax. These formable N to TNC cable assemblies use LC085TBJ coax and are single shielded. Maximum frequency for these N to TNC M/M cables is 6 GHz. This product can also be called a right angle TNC male to right angle N male cable assembly because it can be used in the opposite direction.

Features

• Max Frequency 6 GHz
• Shielding Effectivity > 100dB
• PTFE Dielectric with 69.5% VoP
• Hand Formable
• Tin Filled Copper Composite Braid Outer Conductor
• FEP Jacket

Application

• General Purpose
• Laboratory Use
• System Interconnect

Downloads:

• Datasheets
• 3D CAD Model (.step)
