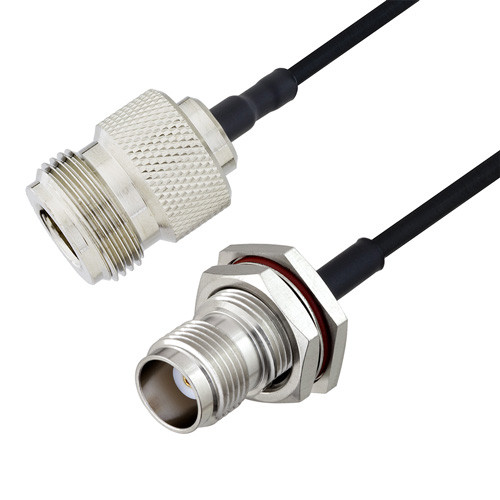

N Female to TNC Female Bulkhead Cable Assembly using LC085TBJ Coax, 3 FT

These high-quality RF coax cable assemblies can be used for telecom, military / defense, laboratory test & measurement, industrial / commercial and many other applications. These RF coaxial cable assemblies are built with N connection on one end and TNC bulkhead connection on the other. This N to TNC cable from L-com has a female to female gender combination. This N female to TNC female coaxial assembly part number LCCA30653-FT3 can also be known as N jack to TNC jack cable assembly when using alternate gender names.

N jack to TNC jack cable assembly LCCA30653-FT3 is manufactured with a formable coax. These formable N to TNC cable assemblies use LC085TBJ coax and are single shielded. Maximum frequency for these N to TNC F/F cables is 6 GHz. This product can also be called a TNC female bulkhead to N female cable assembly because it can be used in the opposite direction.

Features

• Max Frequency 6 GHz
• Shielding Effectivity > 100dB
• PTFE Dielectric with 69.5% VoP
• Hand Formable
• Tin Filled Copper Composite Braid Outer Conductor
• FEP Jacket

Application

• General Purpose
• Laboratory Use
• System Interconnect

Downloads:

• Datasheets
