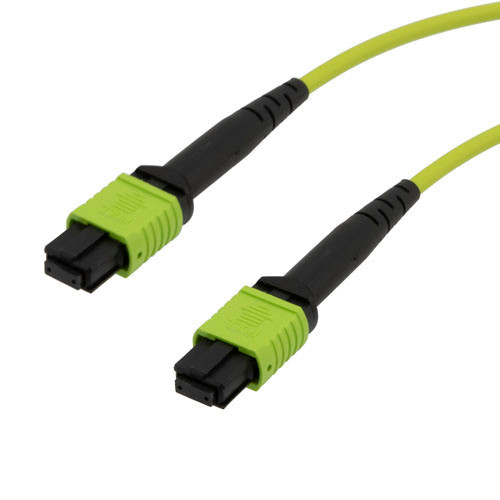

MPO no pins to MPO no pins, 24 fiber,Type B,OM5 50/125um Multimode, LSZH Jacket, Lime Green, 5 meter

These L-com multi-fiber cables provide great advantages in size by offering up to 24 times the density when compared to the same size SC connector! Factory terminated and tested, these OM5 50/125 Multimode fiber optic cables provide significant installation time savings. A push-pull design is utilized for easy mating and removal. Available with or without alignment pins as well as Type A and Type B polarity options, and in Riser-rated or low-smoke,zero halogen jackets. L-com's MPO connectors are fully compatible with US Conec MTP products.

Features

• Fully compatible with US Conec MTP products
• OFNR (Riser Rated) and LSZH (Low Smoke Zero Halogen) jacket available
• Used to connect equipment that utilizes MPO style connectors and OM5 optimized 50/125 Multimode cabling
• Male-Male (pins) and Female-Female (no pins) MPO to MPO assemblies available
• Type A and Type B Polarity options

Application

• 100Gbps and higher Ethernet, extended length links
• Server to switch and switch to switch connectivity
• SWDM
• Data Centers/Enterprise Networking

Downloads:

• 2D Drawing (.pdf)
• 3D CAD Model (.step)
