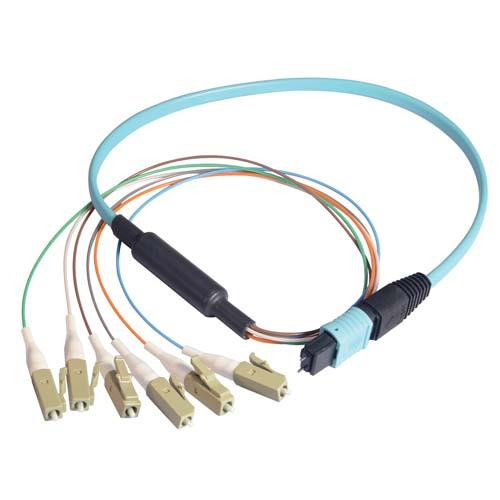

MPO Male to 6x Flex LC Fan-out, 6 Fiber Ribbon, OM3 10G 50/125 Multimode, OFNR Jacket, Aqua, 1.0m

These L-com multi-fiber ribbon cables provide great advantages in size by offering up to 12 times the density when compared to the same size SC connector! Factory terminated and tested, these OM3 10G 50/125 Multimode fiber optic cables provide significant installation time savings. A push-pull design is utilized for easy mating and removal. Fan-out assemblies with the Flex LC connector are ideal for making connections within rack mounted or wall mounted fiber enclosures that utilize single fiber connectors.

The flexible boot on the Flex LC connector enables the strain relief to be bent up to 90° in any direction and will maintain its form without risking cable loss or damage. Available in 6 or 12 count versions. MPO cassettes are also available from L-com. L-com's MPO connectors are fully compatible with US Conec MTP products.

Features

• MPO Cassettes are available here
• Flexible boots on LC fan-out are able to be bent and set in different orientations up to 90° to accommodate tight spaces
• OFNR (Riser rated) jacket complies with strict building codes and unique ribbon design offers great space savings and reduces installation time
• Used to connect equipment that utilizes MPO style connectors and OM3 10G 50/125 Multimode cabling

Application

• Ethernet
• LAN
• Server farms
• Voice/video/data

Downloads:

• 2D Drawing (.pdf)
• 3D CAD Model (.step)
