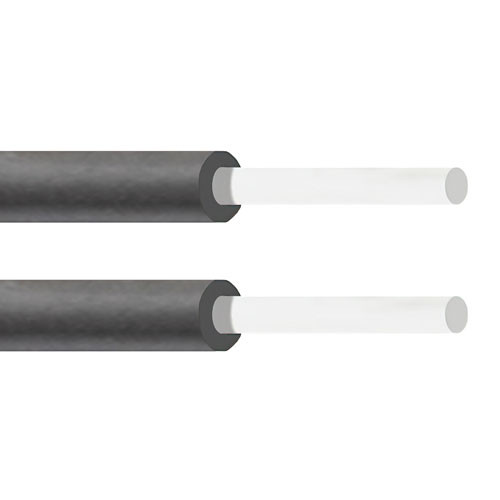

Mitsubishi Super ESKA SH4002, 1x2.2mm Cable, POF Duplex, 100 Meters

The L-com LCSH4002-100M is a 100 meter pre-cut section of Mitsubishi Super ESKA SH4002 Polymer Optical Fiber (POF). The LCSH4002-100M is primarily used for sensing, specialty lighting, and data transmission applications such as temperature and liquid sensors, factory automation and robotics, as well as many medical devices in EMI heavy environments. The L-com LCSH4002-100M features low transmission loss in the visible light spectrum and has excellent durability and reliability. The LCSH4002 is available with in stock lengths of 25, 50, and 100 meters, custom lengths available as well.

Features

• 100 Meter Length
• Duplex
• Core Material: Polymethyl Methacrylate
• Core Diameter: 1.0mm
• Jacket Material: Polyethylene
• Jacket Diameter: 2.2mm
• Numerical Aperture: .5
• Attenuation: .21 dB/m @ 650 nm
• Operating Temperature: -55°C to 70°C

Application

• Control Links for CAT Scanners/MRI Machines
• Medical Devices
• EMI-Heavy Environments
• Temperature and Liquid Sensors
• Factory Automation and Robotics
• Direct Replacement for Copper

Downloads:

• 2D Drawing (.pdf)
