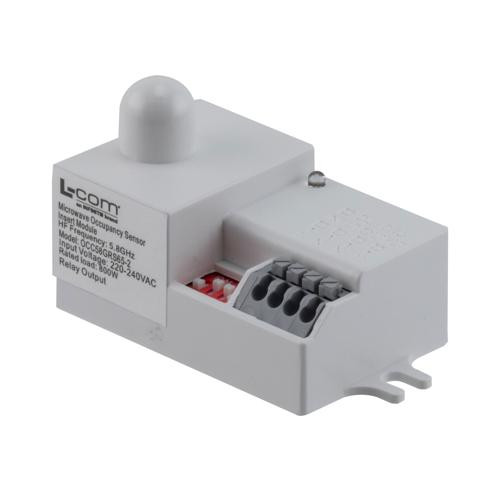

Microwave Occupancy Sensor Insert Module, 5.8 GHz, 220 - 240 VAC, 800 W Relay Output, Miniature Antenna, Dip Switch Adjustment

The L-com OCC58GRS65-2 is a microwave occupancy sensor insert module with an 800 W typical current output. This microwave occupancy sensor has an AC power supply ranging from 220-240 VAC. This motion sensor has an internal antenna with a dip switch adjustment. This loT sensor is suitable for smart buildings, smart homes, healthcare, lighting, and security applications. This occupancy sensors have a 5.8GHz CW radar, ISM band HF system.

This microwave occupancy sensor can operate at a temperature ranging from -20 to +60 deg C. The rated load type for this 220-240 VAC microwave sensor is 800 W. This occupancy sensor features a full 360-degree detection range, an integrated ambient light sensor, adjustable sensitivity and time delay, and low power consumption. This 800 W microwave occupancy sensor has an overall length of 1.81 inches, a width of 1.73 inches, and a weight of 0.11 lbs.

The OCC58GRS65-2 loT occupancy sensor from L-com has a detection range of 4-8 m. This microwave occupancy sensor has a 360 degree detection angle and a 5 sec to 3 min hold time. This motion sensors can be used to optimize space utilization, reduce energy consumption, increase safety and cleanliness, and offer convenient touchless control. All this sensors are manufactured with quality production processes and are 100% factory tested.

Features

• Full 360° Detection Range
• Integrated Ambient Light Sensor
• Adjustable Sensitivity and Time Delay
• Low Power Consumption

Application

• Smart Buildings
• Smart Homes
• Healthcare
• Lighting
• Security

Downloads:

• User Manual
• 2D Drawing (.pdf)
• 3D CAD Model (.step)
