Low power submersible liquid level transmitter, 3 m range, RS485, direct lead, 5 m cable

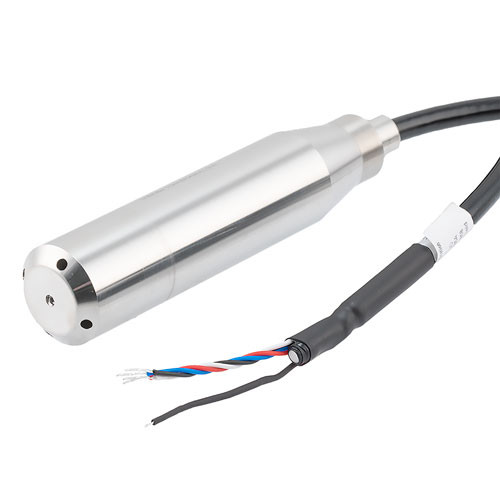

L-Com’s LTSUB7002-3202 is a low power submersible liquid level transmitter with an 3000 mm sensing distance. This liquid level transmitter has a RS-485 output with a direct lead electric connection. This level sensing transmitter has a 5 meter 4 wire cable connection. This level transmitter has a IP68 ingress protection rating. The LTSUB7002-3202 low power submersible liquid level transmitter has a corrosion resistant stainless steel housing. This transmitter has a typical accuracy of 0.5 % full scale and a long-term stability of 0.2 % full scale/year.

This water level transmitter is suitable for the petroleum industry, water and sewage treatment, chemical production, food and beverage and hydrostatic level monitoring applications. This liquid level transmitter has a compensated temperature range of -10 to +70 deg C. This submersible transmitter operates at a temperature ranging from -10 to +85 deg C. This water level transmitter is powered by DC voltage ranging from 3 to 4.2 VDC. The transmitter has excellent shock and vibration resistance and a maximum current draw of just 2.5 mA.

Features

• Suitable for low power applications
• Excellent shock and vibration resistance
• High precision and long term stable performance
• Corrosion resistant stainless steel housing
• RS-485 output

Application

• Petroleum Industry
• Water and Sewage Treatment
• Chemical Production
• Food and Beverage
• Hydrostatic level monitoring

Downloads:

• Datasheets
• User Manual
• 3D CAD Model (.step)
