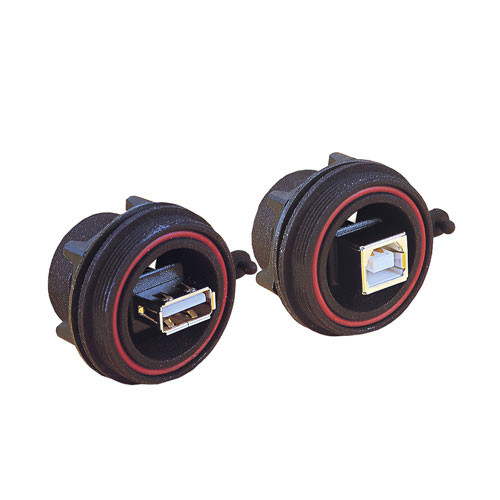

Front Panel Mounting Connector, IP rated sealed B type USB at front, standard A type at rear
Front Panel Mounting Connector, IP rated sealed B type USB at front, standard A type at rear

Front Panel Mounting Connector, IP rated sealed B type USB at front, standard A type at rear

$23.54
$22.36
{"without_tax":{"formatted":"$22.36","value":22.36,"currency":"USD"},"tax_label":"Tax","rrp_without_tax":{"formatted":"$23.54","value":23.54,"currency":"USD"},"saved":{"formatted":"$1.18","value":1.18,"currency":"USD"}}
(You save 5.01% )
SKU: PXP6042/B
Weight: 0.000000 LBS
Adding to cart… The item has been added
Description

Bulgin’s PXP6042/B front panel mounting connector from L-com is a circular data connector, a cutting-edge solution for all your cable connection needs. This innovative connector is IP66, IP68 and IP69K rated environmentally sealed circular connectors designed to provide secure and safe connections in harsh or hostile conditions. This circular data connector features a maximum operating voltage of V and mOhm contact resistance. PXP6042/B Bulgin’s circular data connector brought to you by L-com has an O-ring material and gasket material made from silicone along with 32mm diameter over the coupling ring. This IP66, IP68 and IP69K rated feature 30° twist locking and mates with PXM6033TP type panel mounting connectors.

This PXP6042/B is made from PC/PBT material and comes with 1000 contact life cycles. Bulgin’s front panel mounting connector is the perfect product to use with your PUR cables. Also, supplied with a shielded RJ45, this cable glands are specifically designed to maintain Cat 5e performance, ensuring a reliable and durable connection for your electrical needs. The circular data connector features a UL94V-0 flammability rating and it operates at a temperature ranging from -40 to 120 degree C.

Features

  • PXP6042/B - USB ‘B’ type IP rated connector
  • Opposite USB type connector to rear of panel
  • Mates with PXP6040 and PXP6041 cable connectors

Downloads:
