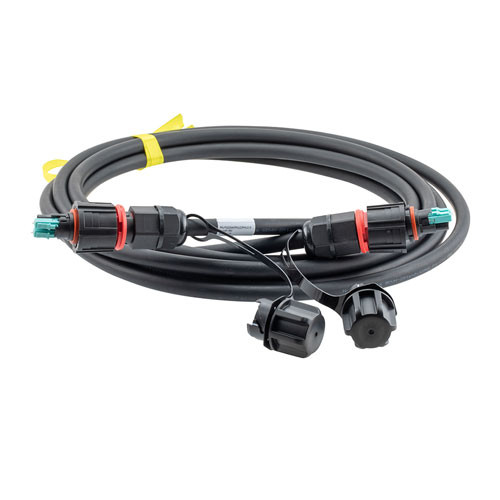

Fiber optic, IP68 Hybrid LC/UPC (2x 12AWG pin contacts) to IP68 Hybrid LC/UPC, OM4, 10.5mm LSZH, 10 meter cable assembly

Looking for a reliable and high-performance harsh environment fiber optic cable for your network infrastructure? Look no further than the L-com FOCM4IPHLCIPHLC-10, an IP68 Hybrid LC/UPC cable that features OM4 fiber and a 10.5mm cable diameter. With an LSZH cable rating and an overall length of 10 meters, this cable is built to withstand even the toughest conditions. The FOCM4IPHLCIPHLC-10 features connectors built to ODVA standard and is IP68, making it compatible with standard distribution boxes and ensuring a secure connection. With a bayonet style locking system and cable retention of up to 100lbs, this cable is designed to be easy to install and maintain.

With an operating temperature range of -40°C to 75C, L-com's FOCM4IPHLCIPHLC-10 is perfect for a wide range of applications, including FTTA (fiber to the antenna), distributed antenna systems (DAS), mobile cell towers, RRU (remote radio unit), BBU (base band unit), industrial, oil & gas, and many more. Whether you need to power a remote device or transmit critical data, the L-com FOCM4IPHLCIPHLC-10 has you covered. With a max DC of 100V 9.3A 930W and a max AC of 240V 4.8A 1.15kW, this cable is ideal for a variety of applications. So why wait?

Features

• Connectors built to ODVA standard
• IP68 rated
• Fiber and power for simplified cable deployment
• Compatible with standard distribution boxes
• Bayonet style with locking system
• OSP Operating temperature -40°C to 75°C
• Cable retention: 100lbs
• Max DC: 100V 9.3A 930W
• Max AC: 240V 4.8A 1.15kW

Application

• FTTA (fiber to the antenna)
• Distributed Antenna systems (DAS)
• Mobile Cell Tower
• RRU (remote radio unit), BBU (base band unit)
• Industrial
• Oil & gas

Downloads:

• 2D Drawing (.pdf)
