Category 6a 10gig Ethernet Patch Cable, F/UTP Shielded, RJ45, HiTemp 105C CMP Plenum Jacket, 26AWG Stranded Relaxed Style, 300V, Green, 100F

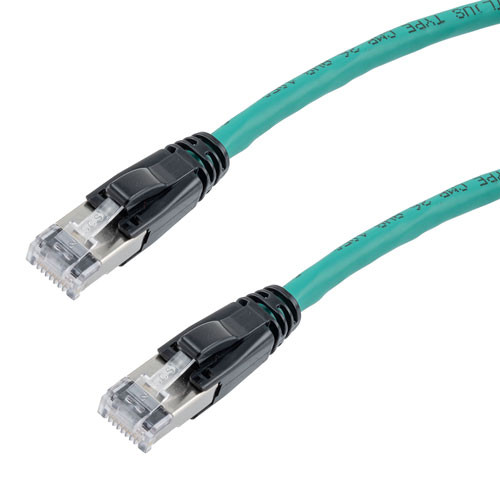

L-com's TRD626ASP-GRN-100F is a Category 6a-rated 10-gigabit Ethernet patch cable suitable for data centers and data center edge, high-speed Ethernet up to 10GBASE-T, medical devices, environments, enterprise communications, including 10Gbps high-speed data, video, and voice, and premise and building installations including in wall riser (CMR), in-ceiling Plenum (CMP) and air space applications. This Ethernet patch cord features RJ45 male connectors on both ends and 50µ minimum gold-plated contacts for reliability. This twisted pair cable can withstand temperatures ranging from -20 to 105 degrees C and has 4 twisted pairs and 8 wire strands. This green Ethernet patch cable from L-com has 26AWG stranded relaxed-style conductors for flexibility and uses an aluminum polyester foil shield for protection against EMI and RFI. The relaxed stranded conductors and spline-less design of this TRD626ASP-GRN-100F patch cord make it more flexible than a typical Cat6a cable.

This Ethernet patch cord can handle a data speed of up to 10 Gbps. This Ethernet patch cable assembly has a diameter of 0.223 inches. The F/UTP-shielded Ethernet cable TRD626ASP-GRN-100F from L-com has a voltage rating of 300 V. This 100-feet Cat6a patch cord made in the USA comes with a +105°C plenum CMP-rated jacket, and the PVC jacket material is appropriate for premise wiring and building installations including in ceiling, in wall and plenum air space applications.

Features

• Category 6a 10 Gigabit relaxed Ethernet cable assembly
• Plenum rated CMP jacket is appropriate for premise wiring and building installations including in ceiling, in wall and plenum air space applications
• Special relaxed 26AWG stranded conductors and spline-less design makes this cable more flexible than a typical Cat6a cable especially when compared to a typical 23AWG solid CMP cable
• Higher temp range than typical with +105°C jacket and 50um gold plated contacts for reliability
• Shielded design to protect against EMI/RFI

Application

• Data centers and data center edge
• High speed LAN up to 10GBASE-T
• Medical devices and environments
• Enterprise communications including 10Gbps high-speed data, video and voice
• Premise and building installations including in wall Riser (CMR), in ceiling Plenum (CMP) and air space applications

Downloads:

• 2D Drawing (.pdf)
