2.4 GHz 3 dBi Black Radome Enclosed Omni Antenna - 12" Lead - RP-TNC Plug

These very compact 2.4GHz Omni WiFi antennas provide broad coverage and 3 dBi gain. They are ideally suited for IEEE 802.11b and 802.11g wireless LANs, Bluetooth® and other applications where wide coverage is desired.

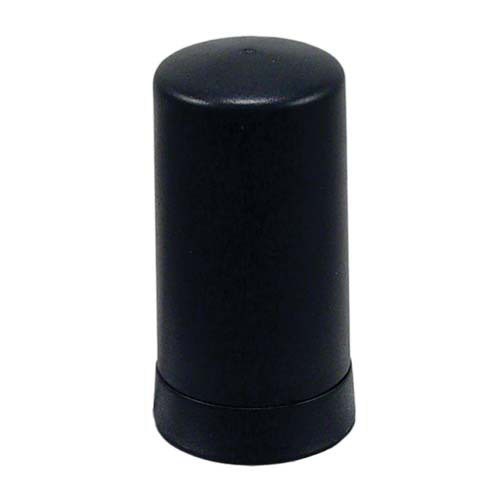

This RF antenna is only 2.7" long and features a Black aesthetic ABS plastic radome. White radomes are also available upon request. Designed for bulkhead mounting, the HG2403UR-BAN12RTP features a 12 inch 195-series low loss pigtail terminated with either a reverse polarity TNC plug connector. Custom connectors are also available as well as custom cable types and lengths. Because of its near-invisible design this antenna is ideal for use on vehicles where vandal-resistance and aesthetics are important.

For additional information and complete specifications, click on the Data Sheet link in the Downloads section.

Features

• Bulkhead mount
• Radome Enclosed, ideal for outdoor use
• 12" 195-series low loss antenna lead
• Compact size

Application

• Multipoint and Mobile Applications
• 2.4 GHz ISM Band
• IEEE 802.11b and 802.11g Wireless LAN
• WiFi and Bluetooth® applications
• Wireless Video Systems

Downloads:

• 2D Drawing (.pdf)
• 3D CAD Model (.step)
