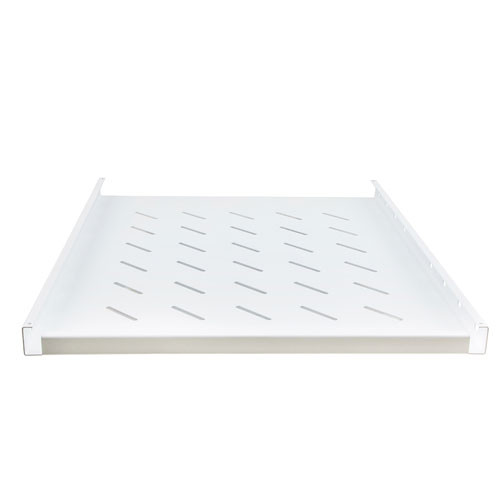

19" Fixed Shelf 1U 21.6in (550mm), adj mount 4-post -RAL9003 -Signal White

L-com’s LC-SWAFSHELF550-W is a 19-inch fixed shelf that is commonly used for holding and storing routers, cable modems, keyboards, or any other networking or AV equipment. This shelves are designed for 4-post racks and are suitable for A/V, broadcasting, networking, and data/IT applications. These fixed shelves have a 21.6-inch (550mm) depth and are available in a variety of sizes. This shelves are produced from heavy gauge cold rolled steel with an RAL9003-signal white color and are the ideal complement to your rack because they have venting for maximum airflow. The LC-SWAFSHELF550-W 1U fixed shelf from L-com is available in 1U size and provides a secure equipment installation.

This 4-post shelves were designed to hold 242 pounds and can be mounted to most any 4-post rack using standard mounting hardware. Shelf has a surface area of 16.2" x 21.7", which is fixed. The mounting rails can be adjusted from 15.5 inches to 33.3 inches. These shelves from L-com occupy 1 rack unit (1RU) and are compatible with any EIA Standard 19" server rack, bracket, or cabinet. This 4-post fixed rack shelves are easy to install and remove, which can save you time and effort when setting up or reconfiguring your equipment.

Features

• VERSATILE: Made from heavy gauge Cold Rolled Steel, these 1U 4 Post shelves were designed to hold 242 pounds and can be mounted to most any 4 post rack using the included mounting hardware.
• CONVENIENT: Features venting for maximum airflow making this shelf the perfect addition to your rack. Common uses include holding and storing routers, cable modems, keyboards, or any other networking or AV equipment.
• COMPATIBLE: These shelves take up 1 Rack Unit (1RU) and are compatible with any EIA Standard 19" server rack, bracket or cabinet.

Application

• DATA/IT applications
• A/V applications
• Broadcasting
• Networking

Downloads:

• 2D Drawing (.pdf)
• 3D CAD Model (.step)
