0.01mm, 1mm/1.27mm Back Plunger Dial Indicator, 50-0-50, 8mm stem, Series 1
$196.00
$186.20
{"without_tax":{"formatted":"$186.20","value":186.2,"currency":"USD"},"tax_label":"Tax","rrp_without_tax":{"formatted":"$196.00","value":196,"currency":"USD"},"saved":{"formatted":"$9.80","value":9.8,"currency":"USD"}}
(You save
5.00%
)
SKU:
1960A
Lead Time (Days):
0
Weight:
1.000000 LBS
- Uses Mitutoyo's proprietary shock-proofing mechanism.
- Has excellent durability and shock resistance.
- One revolution type
MITUTOYO UPC CODE: 603908711810
PRIMARY SUPPLIER EAN: 4946368843759
COUNTRY OF ORIGIN: JAPAN
HARM_CODE: 9017.30.8000
ECCN NUMBER: EAR99
HAZARDOUS: N1
SHIPPING LENGTH: 4 SHIPPING WIDTH: 2.5 SHIPPING HEIGHT: 2 SHIPPING WEIGHT: 1 Series No.: 1 MECH/DIGI: Mechanical IND. OR SET: Individual
Range: 0-1/1.27mm PRIM. MEAS. RANGE LOWER MM: 0mm PRIM. MEAS. RANGE UPPER MM: 1mm SEC. MEAS. RANGE LOWER MM: 0mm SEC. MEAS. RANGE UPPER MM: 1.27mm RESORGRAD. MM: 0.01mm ACCURACY MM: ±0.014mm PRIM (OD) CONT. PNT MATERIAL: Carbide MEASURE FORCE: 0.4 - 1.4N STEM. DIA.: 8mm BACK TYPE: Plunger RANGE PER REV MM: 1.27mm RANGE FULL STROKE MM: 1.27mm DIAL READ: 50-0-50 FaceColor: Yellow
Related Products
SKU: 2960A

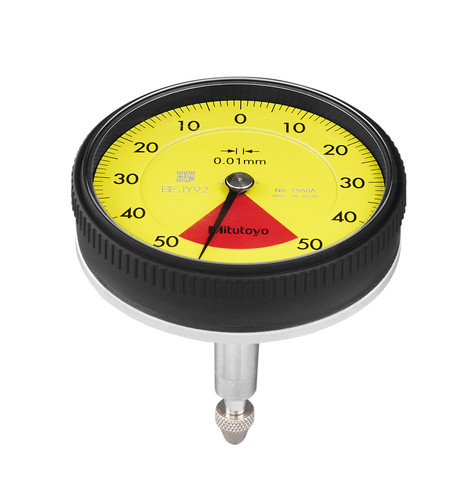

0.01mm, 1mm/1.27mm Back Plunger Dial Indicator, 50-0-50, Series 2, 8mm stem, One Rev, Shockproof
