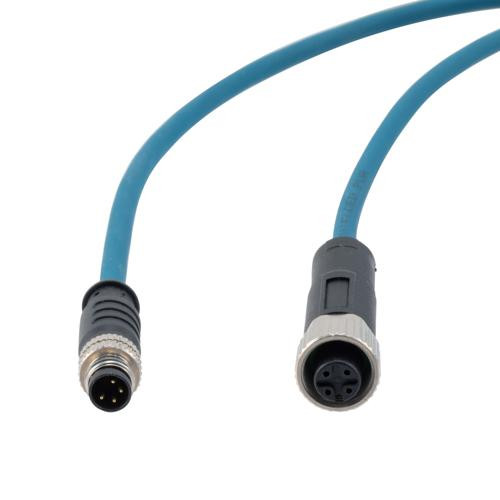

M8 4-Position Male to M12 4-Position Female IP67 A-Code Cable Assembly, Unshielded, 24 AWG, PUR Jacket, Blue, 15 Meter

L-com’s TR8GA420-P4L-15M is an M8 4-position male to M12 4-position female IP67 A-code cable assembly used to connect different interfaces and interchange M8 and M12 signals. This cable assembly features a male M8 connector on one end and a female M12 connector on the other end, allowing for seamless connectivity between devices. The M8 to M12 A-code cable assembly is IP67-rated for waterproofing, making it suitable for both indoor and outdoor use.

The TR8GA420-P4L-15M cable assembly from L-com is constructed with 24 AWG unshielded wires and a PUR jacket, providing excellent connectivity and flexibility. This 3-pin circular cable has a length of 15 meter and comes in a blue color. The IP67 Rating and flexible length of this sensor cable make it suitable for farms, restaurants, freezers, and sensors and actuators used in factories and industrial applications.

Features

• M12 and M8 connectors are threaded and IP67 rated when mated properly and their secure, threaded design makes them extremely resistant to accidental disconnects
• Used to connect to M12 and M8 devices that utilize a 4 position, A-code (single keyway) connector such as sensors and actuators
• Used to connect a device that utilizes M8 connectors with M12 applications
• Durable PUR Jacket for industrial applications
• Available in 3 or 4 position, options include male to female, male to open and female to open in both shielded and unshielded designs

Application

• I/O connectivity
• Industrial control and factory automation including moving and fixed drag chain
• DeviceNet, IO Link and Profibus
• Sensor and actuators
• Test equipment

Downloads:

• 2D Drawing (.pdf)
