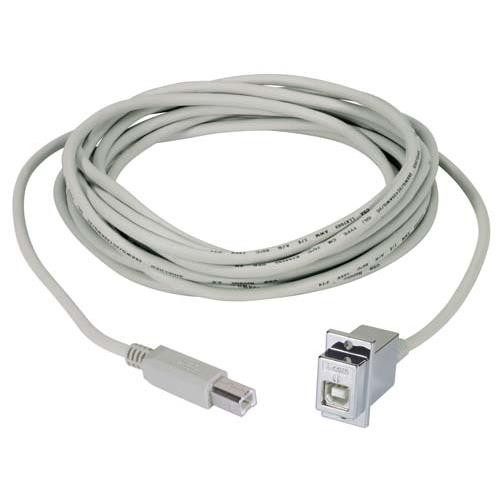

USB Type B Coupler, Female Bulkhead/Male, 36 in.

Another unique panel mount USB option features a bulkhead Type B jack to a molded Type B plug attached via USB 2.0 compliant cable. These cables can be directly connected to a mating connector inside an enclosure. These assemblies are fully shielded and use L-com's popular ECF504 style housing that can be used with virtually any panel thickness.

The recommended 4-40 mounting screws must be purchased separately (P/N ECF440). Twisted pair data lines help reduce crosstalk while 20 AWG power conductors enable maximum power transfer from host to peripheral. Custom lengths available upon request with minimal quantity requirements.

Features

• 20 AWG power leads allow for maximum power transfer
• 30 micro inch gold plated contacts provide reliable connections with repeated mating cycles
• Allows USB cables to be passed through panels or enclosures
• Connectors are USB B panel mount female to standard USB B male
• Screw mount for secure installations

Application

• Data Acquisition
• Test and Measurement
• PC Peripheral Interconnects

Downloads:

• 2D Drawing (.pdf)
• 3D CAD Model (.step)
