Another unique panel mount USB option features a bulkhead Type B jack to a latching Type A plug attached via USB 2.0 compliant cable. These cables can be directly connected to a mating connector inside an enclosure to provide lock down mating retention with any USB Type A jack. These assemblies are fully shielded and use L-com's popular ECF504 style housing that can be used with virtually any panel thickness. The recommended 4-40 mounting screws must be purchased separately (P/N ECF440). Twisted pair data lines help reduce crosstalk while 20 AWG power conductors enable maximum power transfer from host to peripheral. Custom lengths available upon request with minimal quantity requirements.

Features

• 30 micro inch gold plated contacts provide reliable connections with repeated mating cycles
• Allows USB cables to be passed through panels or enclosures
• Available in 12", 24", 36", 72" & 120" lengths

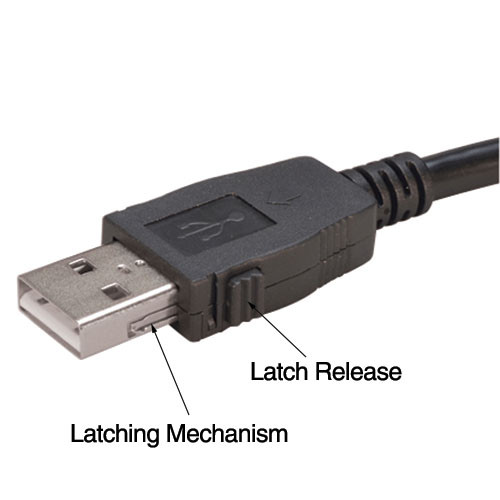

• Unique latching feature provides a secure connection to any USB type A jack
• 20 AWG power leads allow for maximum power transfer

Application

• PC Peripheral Interconnects
• Data Acquisition
• Test and Measurement

Downloads:

• Tips
• 2D Drawing (.pdf)
• 3D CAD Model (.step)
