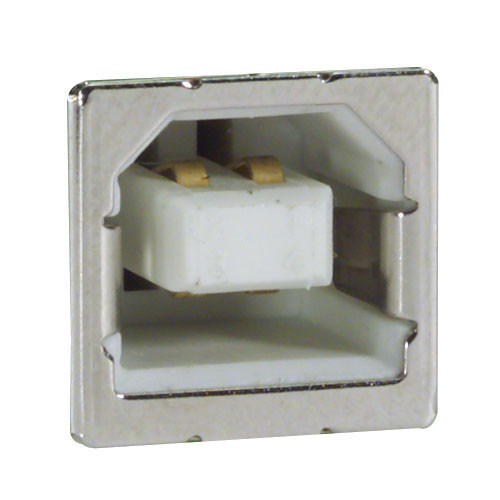

USB Adapter B-A, Ivory

L-com's ECF USB Adapter family allows USB cables to be efficiently passed through a panel or enclosure. The ECF USB Adapter options include A-A, A-B, and B-A connector combinations in addition to both shielded and unshielded USB adapter designs. These ECF style USB adapter products securely mount via 4-40 screws which are sold separately (PN ECF440).

Features

• 30 micro inch gold plated contacts provide reliable connections with repeated mating cycles
• Allows USB cables to be passed through panels or enclosures
• Connector options are USB A-A, B-A & A-B
• Screw mount for secure installations
• Shielded and Unshielded housings available for user grounding preference

Application

• Data Acquisition
• PC Peripheral Interconnects
• Test and Measurement

Downloads:

• 2D Drawing (.pdf)
• 3D CAD Model (.step)
