UNO6 GM Spherical Positioner Kit

This item requires a custom order, please call us.

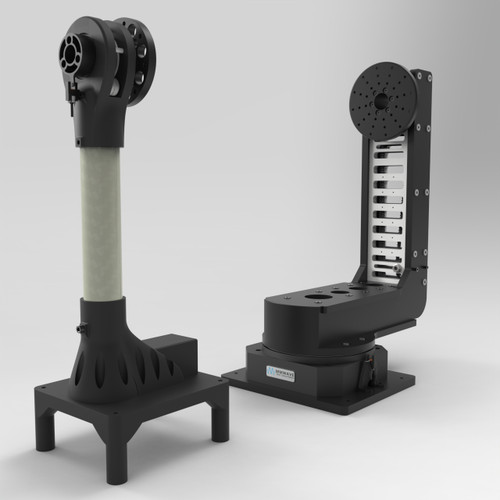

The UNO series positioners from MmWaveTest are mast-based spherical azimuth-roll-roll antenna positioners designed with a focus on quality. By mounting the DUT from the rear in the azimuth-roll positioner and pairing it with a separate roll mast to maintain constant polarization with the DUT, this setup achieves excellent results as it is free from the reflection shadows in a dual arm positioner. All UNO positioners, even the smallest models, use instrument-grade azimuth and roll drives with strength, high repeatable precision, and low backlash. They are built with quality in mind to ensure longevity even under daily use. The UNO6 Grid Mast positioner provides a sturdy roll mast construction and azimuth base. A strong, precise roll head with a 100 mm through-hole offers flexible mounting options, support brackets, and a bearing system for a rotating frequency extender. This kit includes the UNO6 GM 2-axis roll-azimuth grid mast positioner, and a matching 1-axis roll antenna glassfiber mast

DUT / AUT dimensions

Supports DUTs up to 25 kg (55 lb.), a diameter of 1.2 m (3.9 ft.), and a translational depth of 35 cm (14").

Delivered with

• 260 W 100-240V power supply
• Multi-axis controller
• Power and control cabling
• Absorber kit
• It is available with FF Python code, or an NF-FF software suite with an RTOS controller

Downloads:

• UNO6GM product sheet (.pdf)
