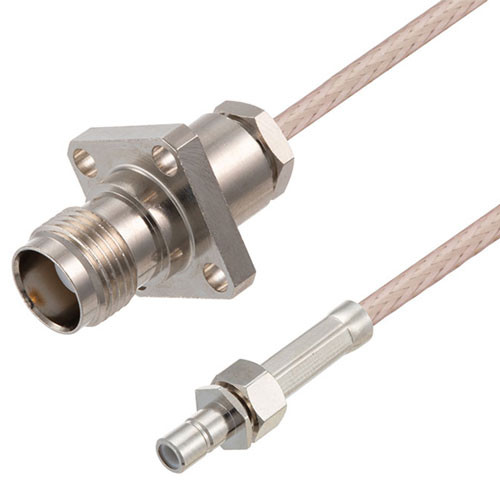

TNC Female 4 Hole Flange to SMB Jack Cable Assembly using RG316-DS Coax, 4 FT , LF Solder

These high-quality RF coax cable assemblies can be used for telecom, military / defense, laboratory test & measurement, industrial / commercial and many other applications. These RF coaxial cable assemblies are built with TNC 4 hole flange connection on one end and SMB connection on the other. This TNC to SMB cable from L-com has a female to jack gender combination. L-com's RF cable assembly can be bent up to 1.57 inch with one time minimum bend radius of 0.59 inch. TNC jack to SMB female cable assembly LCCA31413-FT4 is manufactured with a flexible coax.

These flexible TNC to SMB cable assemblies use RG316-DS coax and are double shielded. This radio frequency cord is wrapped in an FEP jacket which has a 0.114 inch diameter and provides low loss with a maximum VSWR of 1.4:1. L-com’s TNC to SMB Female/Jack cable operates at a maximum frequency of 2 GHz. This product can also be called a SMB jack to TNC female 4 hole flange cable assembly because it can be used in the opposite direction.

Downloads:

• 2D Drawing (.pdf)
