SVGA HD15 Male/Female with Disconnect 25.0 ft

Now there is a solution to your difficult installation problems. This VGA cable series features a fully populated DDC compliant assembly with one male and one female low profile HD15 connector and this Super Thin cable. An additional feature of this series is this unique user defined mounting hardware plus a low profile break connector. The low profile disconnect connector's small size allows routing through 3/4" conduit and other tight spaces that would not accommodate the size of a HD15 connector. Offered in standard lengths of 15, 20, 25, 50 and 75 feet with a 1 foot lead in length to the low profile connector.

Features

• Available in 5 standard lengths from 15 to 75 ft
• Three 75 Ohm coaxial cables assure optimum video signal transmission

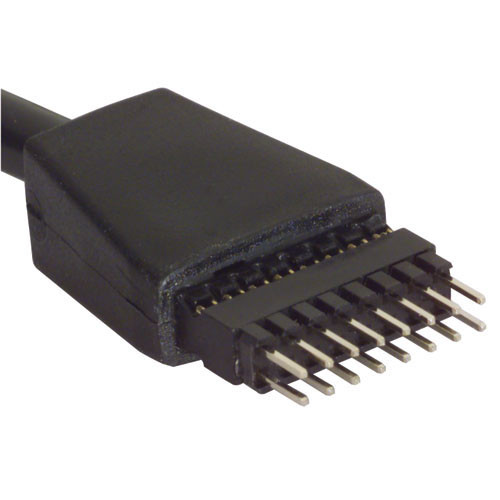

• Low profile disconnect and HD15 backshell allows routing through 3/4" conduit
• Supplies SVGA video signal transmission in difficult routing situations
• User defined hardware results in maximum mounting flexibility

Application

• PC monitor applications
• Video Signage
• KVM applications
• Projector applications

Downloads:

• 2D Drawing (.pdf)
• 3D CAD Model (.step)
