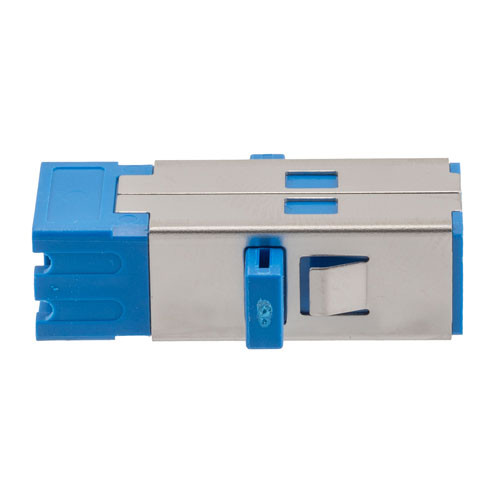

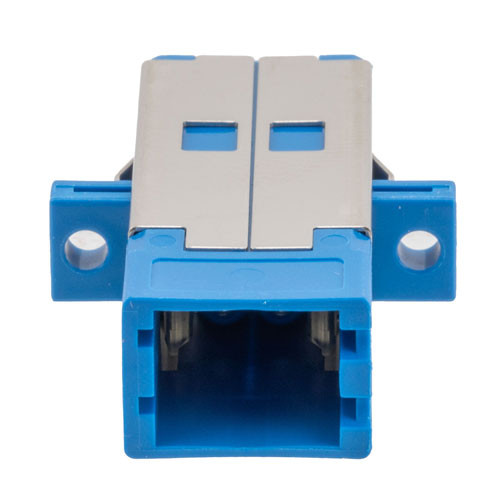

SN SC Simplex Dual Channel (4 fiber) Adapter, with flange, Blue

SN SC-footprint non-shuttered adapters are available either as a 2-channel (4 fibers) or 4-channel (8 fibers) variant. The 2-channel type is designed to fit to legacy hardware incorporating an SC simplex (LC duplex) cutout. These retro-fittable adapters are the ideal choice for cabling providers or equipment manufacturers that want to upgrade their existing systems to SN® hyper-density without redesigning new panels or hardware. Each adapter will double the density of existing SC/LC-based hardware and subsequently reduce the total cost per port of the overall system.

Operators can benefit from significantly reduced rack consumption and improve their RU (Rack Unit) revenue-efficiency accordingly. SC-footprint, non-shuttered adapters can be stacked side-by-side within extended multi-adapter panel cut-outs without consuming additional space beyond the SC footprint size. For example 6x adapters could be place in one elongated slot if necessary.

Features

• Retro-fittable to standard SC/LC panel cut-outs
• Double the patch-panel density of LC
• Accepts SN® standard and junior+ connectors
• Supports 200G/400G VSFF connectivity
• Color coded for rapid Identification of fiber-type
• Telcordia, ANSI, TIA and IEC compliant

Application

• Upgrading existing fiber management hardware from SC/LC to SN
• Improved rack-space utilization in Brownfield data centers
• High-density centralized cross-connects and patch panels
• Mixed fiber panels combining different connector types

Downloads:

• 2D Drawing (.pdf)
