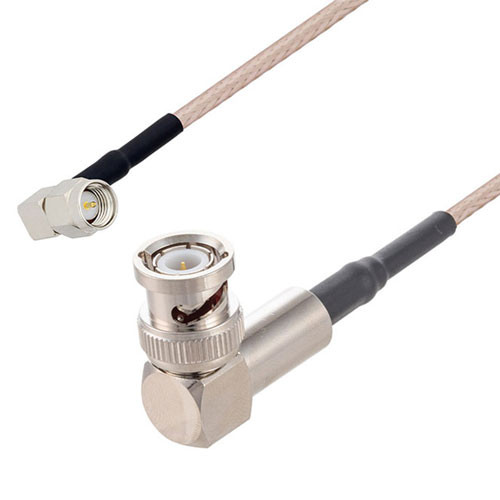

SMA Male Right Angle to BNC Male Right Angle Cable Assembly using RG316-DS Coax, 0.5 FT with HeatShrink

These high-quality RF coax cable assemblies can be used for telecom, military / defense, laboratory test & measurement, industrial / commercial and many other applications. These RF coaxial cable assemblies are built with right angle SMA connection on one end and right angle BNC connection on the other. This right angle SMA to right angle BNC cable from L-com has a male to male gender combination. SMA plug to BNC plug cable assembly LCCA31392-FT0.5 is manufactured with a flexible coax.

These flexible SMA to BNC cable assemblies use RG316-DS coax (RG316-DS flexible) and are double shielded. This radio frequency cord is wrapped in an FEP Jacket which has a 0.114 inch diameter and provides low loss with a maximum VSWR of 1.4:1. L-com’s SMA to BNC Male/Male cable operates at a maximum frequency of 3 GHz. This product can also be called a right angle BNC male to right angle SMA male cable assembly because it can be used in the opposite direction.

Downloads:

• 2D Drawing (.pdf)
