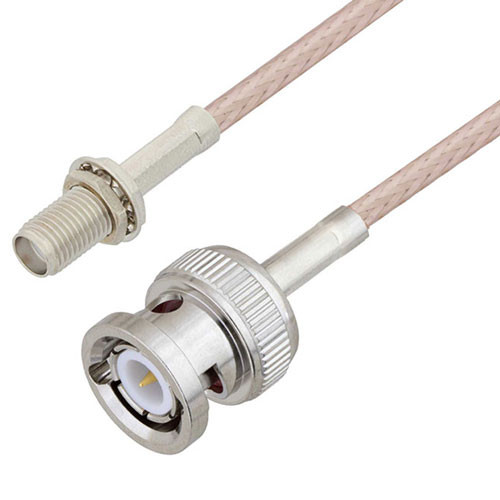

SMA Female Bulkhead to BNC Male Cable Assembly using RG316-DS Coax, 0.5 FT

These high-quality RF coax cable assemblies can be used for telecom, military / defense, laboratory test & measurement, industrial / commercial and many other applications. These RF coaxial cable assemblies are built with SMA connection on one end and BNC connection on the other. This SMA to BNC cable from L-com has a male to female gender combination. SMA plug to BNC jack cable assembly LCCA31394-FT0.5 is manufactured with a flexible coax.

These flexible SMA to BNC cable assemblies use RG316-DS coax (RG316-DS flexible) and are double shielded. This radio frequency cord is wrapped in an FEP Jacket which has a 0.114 inch diameter and provides low loss with a maximum VSWR of 1.4:1. L-com’s SMA to BNC Male/Female cable operates at a maximum frequency of 3 GHz. This product can also be called a BNC female to SMA male cable assembly because it can be used in the opposite direction.

Downloads:

• 2D Drawing (.pdf)
