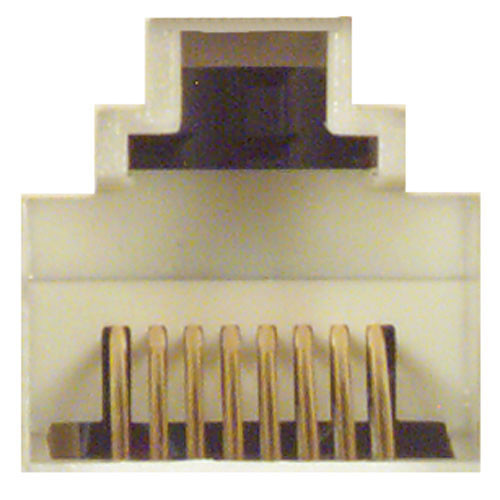

Shielded Cat6 ECF Keystone Jack 110/RJ45 EIA568A/B

These unique Category 6 panel mount RJ45 connector kits solve the problem of mounting category rated jacks into panels that are too thick for standard keystone style systems. These connectors use a standard 110 IDC style termination on the back allowing for quick termination. The metal flange allows secure mounting of this connector into panels thicker than 0.062". Packaged as a kit, including the flange, two 4-40 screws, and one RJ45 Cat 5E jack.

Features

• Available in five colors or as a shielded jack
• Packaged as a kit to allow for termination before installing onto a panel
• Panel mount Category 6 RJ45 110 style keystone connectors to panels over .062" thickness
• Standard 110 IDC style termination on the back allowing for quick termination
• Two 4-40 screws allow for secure mounting to all panels

Application

• Network infrastructure
• IDF/MDF
• LAN
• Premise wiring

Downloads:

• 2D Drawing (.pdf)
• 3D CAD Model (.step)
