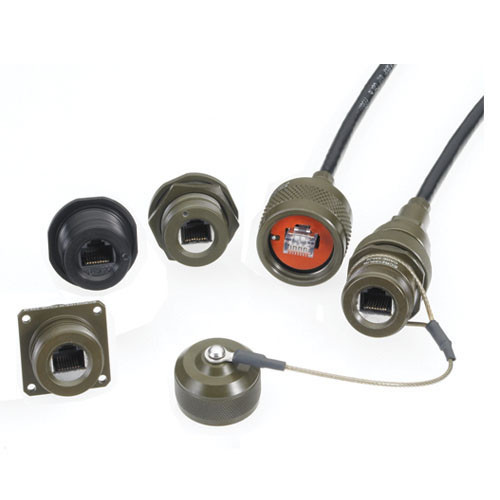

L-com's ruggedized RJ45 plugs are designed to integrate with other ruggedized jam-nuts, flange mounts and in-line receptacles. Special compressive fittings allow these plugs to work with shielded or unshielded cable. A compression nut establishes 10lb of cable strain relief establishing robust cable strength. Internal conductive compression is used to interoperate with the cable braid to form a 360° ground plane and is comprehensively shielded. Available in Category 5e or Category 6 versions and with or without dust caps.

Category 5e versions do not come with an RJ45 but Category 6 versions do. Bulk cable is sold separately. These parts are designed to work with cables that have an outer diameter of.190-.270 or.271-.330 inches. Ruggedize your plugs for harsh environmental applications today!

Features

• Able to integrate with L-com's ECRD & ECSD & ECRH & ECSH style Ruggedized Flange Mounts, ECRK & ECSK & ECRJ & ECSJ style Jam nuts and ECRP & ECSP style In-line Receptacles as well as assemblies terminated with those receptacles
• Rated for Category 5e and designed to work with cables that have an OD of .190-.270 inches
• 10 lbs of cable strain relief enables robust cable strength and can accommodate both small and large cable diameters and comes complete with compressive fittings for shielded cable
• Please note RJ45 connector is sold separately and is required for final assembly
• Zinc-Nickel finish is shielded, grounded and olive drab in color; Zinc-Nickel options are NOT RoHS compliant

Application

• Factory network
• Industrial process control
• 10/100/1000 Base-T networks
• Battlefield communication systems
• Harsh environment

Downloads:

• User Manual
• Tips
• 2D Drawing (.pdf)
• 3D CAD Model (.step)
