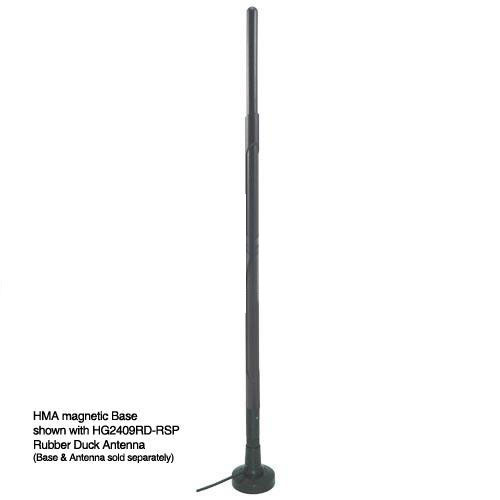

The HMA6-Series magnetic mount is well suited for use with RP-SMA Plug Rubber Duck type antennas. The magnetic base is suitable for fixing to vehicles* or other metal surfaces as well as sitting on a tabletop or shelf. The 5 ft.

(1.5m) High Performance Low-Loss 100 Series cable allows the user to position the antenna away from any obstacles or interference. The cable is terminated with a RP-SMA Plug connector. Shorter cable length and custom connectors are available.

*Installation Note: This mount is not intended for use outside moving vehicles, such as on a trunk lid or roof.

Available Rubber Duck Antennas for this Mount.

HG2402RD-RSF 2.4 GHz 2.2 dBi HG2403RD-RSF 2.4 GHz 3 dBi HG2405RD-RSP 2.4 GHz 5.5 dBi HG2407RD-RSP 2.4 GHz 7 dBi HG2409RD-RSP 2.4 GHz 9 dBi HG2458RD-RSP 2.4 GHz to 5.8GHz 3 dBi HG1903RD-RSP 1.9 GHz 3 dBi HG3505RD-RSP 3.5 GHz 5 dBi HG903RD-RSP 900 MHz 3 dBi HG905RD-RSP 900 MHz 5 dBi.

Features

• 5 foot, Cable Black High Performance Low-Loss 100 Series
• Base Material Black ABS & Flame Rating UL94-HB
• Weight .13 lbs. (.05 kg)
• Diameter 1.6" (40.6 mm), Height 1.5" (38 mm),
• RP-SMA-Plug Connector

Application

• Mobile RF applications
• WLAN
• Public safety
• Wi-Fi

Downloads:

• Datasheets
• 2D Drawing (.pdf)
