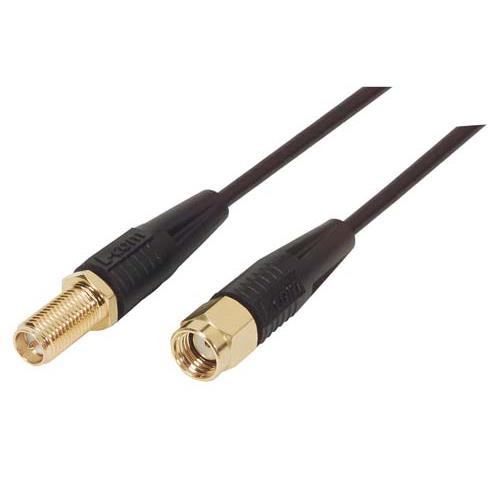

RG174 Coaxial Cable Reverse Polarized SMA Plug to Jack 25.0 ft

In situations that require an extension cable to relocate a wireless LAN antenna these are the cables you need. FCC part 15.203 dictates the need for a non standard interface to be used for connectors designed for use on spread spectrum wireless devices. These coaxial cable assemblies feature a Reverse Polarized SMA Plug to Jack configuration allowing you to simply remove the antenna from the base unit and relocate using these extension cables to link the antenna to the base unit. This type of extension cable with non standard interfaces can be difficult to find but are typically available in stock from L-com.

Features

• Available from stock in lengths of 5, 10, 15, 20 and 25 feet
• Gold plated contacts reduce insertion loss
• 50 Ohm cable used in spread spectrum LAN/WAN applications

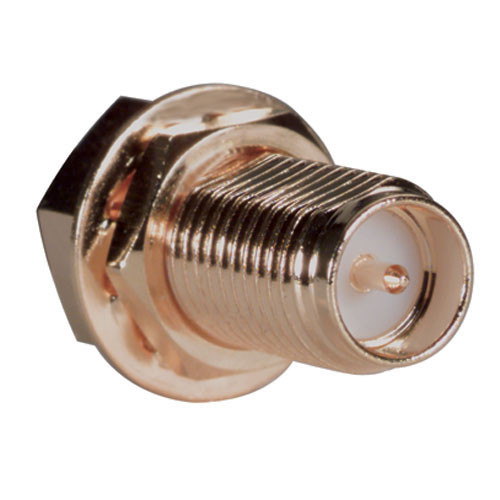

• Reverse polarized plug to jack connector configuration ideal for LAN/WAN antenna relocation applications
• Reverse polarized SMA interfaces comply with FCC part 15.203 requirements

Application

• GPS
• Wireless Infrastructure
• Data Transmission
• RFID
• Test and Measurement

Downloads:

• 2D Drawing (.pdf)
