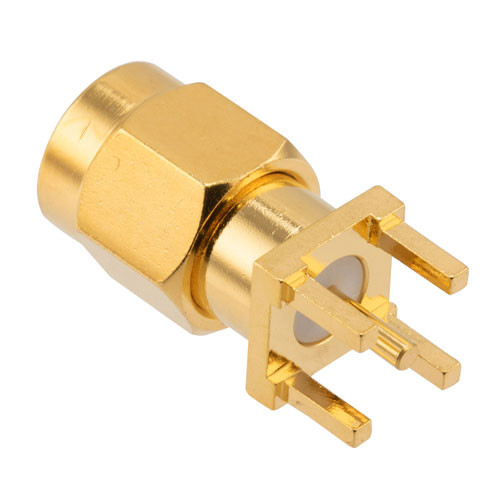

RF PCB Connector, SMA, Male, Up to 18 GHz, Through Hole, Straight, 0.2 INCH X 0.063 INCH Hole spacing

RFPCB-SMA-MS18G-36 SMA male PCB connector available from L-com has a 50 Ohm impedance. This RF connector has a through hole connector mount interface and is designed for a wide variety of Printed-Circuit Board (PCB) applications in RF and microwave systems. This SMA male connector uses solder as an attachment method. This SMA male PCB connector provides a minimum frequency of DC and a maximum frequency of 18 GHz. The SMA connector is available in a 0.68-inch length and 0.34-inch width.

The L-com SMA male PCB connector has a PTFE dielectric type. This SMA PCB connector has a brass body with gold plating. This RFPCB-SMA-MS18G-36 SMA connector uses brass contacts and gold plating material. This SMA male PCB radio frequency connector is RoHS and REACH compliant.

The SMA male connector with 50 Ohm impedance has a weight of 0.009 lbs. This RF connector has a high-quality construction. The male coaxial connector is capable of operating at temperatures ranging from -55 deg C to 125 deg C.

Features

• Max. Operating Frequency 18 GHz
• Gold Plated Brass Contact
• 0.2 INCH X 0.063 INCH Hole spacing

Application

• General Purpose Test
• PCB Applications

Downloads:

• Datasheets
• 2D Drawing (.pdf)
• 3D CAD Model (.step)
