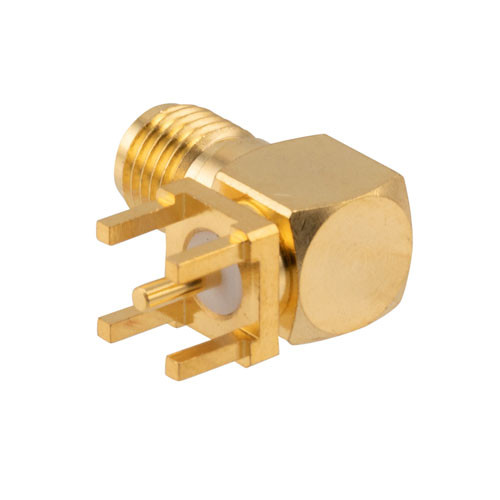

RF PCB Connector, SMA Female right angle

RFPCB-SMA-F-R-18G-13 SMA jack PCB connector available from L-com has a 50 Ohm impedance. This RF connector is designed for a wide variety of Printed-Circuit Board (PCB) applications in RF and microwave systems. The SMA connector is available in a 0.60-inch length, 0.55-inch width, and 0.28-inch height. This SMA PCB connector has a brass body with Gold over Nickel over Copper plating.

This RFPCB-SMA-F-R-18G-13 SMA connector uses phosphor bronze contact and Gold over Nickel over Copper plating material. The SMA jack connector uses solder as an attachment method. This SMA jack connector with 50 Ohm impedance has a weight of 0.03 lbs. The RFPCB-SMA-F-R-18G-13 threaded RF connector has a right angle body style and a high-quality construction.

Features

• Max Frequency 18 GHz
• Cu Ni plating Au flash

Application

• PCB Applications
• General Purpose Test

Downloads:

• Datasheets
• 2D Drawing (.pdf)
