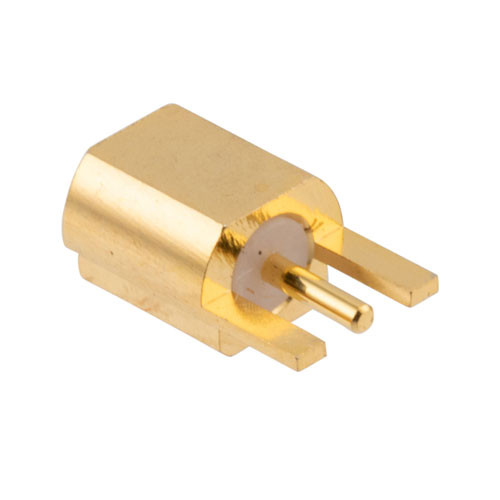

RFPCB-MMCX-F-S-6G-33 MMCX jack PCB connector available from L-com has a 50 Ohm impedance. This RF connector is designed for a wide variety of Printed-Circuit Board (PCB) applications in RF and microwave systems. The MMCX connector is available in a 0.30-inch length, 0.18-inch width, and 0.18-inch height. This MMCX PCB connector has a brass body with Gold over Nickel over Copper plating.

This RFPCB-MMCX-F-S-6G-33 MMCX connector uses beryllium copper contact and Gold over Nickel over Copper plating material. The MMCX jack connector uses solder as an attachment method. This MMCX jack connector with 50 Ohm impedance has a weight of 0.02 lbs. The RFPCB-MMCX-F-S-6G-33 threaded RF connector has a high-quality construction.

Features

• Max Frequency 6 GHz
• Cu Ni plating Au flash

Application

• PCB Applications
• General Purpose Test

Downloads:

• Datasheets
• 2D Drawing (.pdf)
