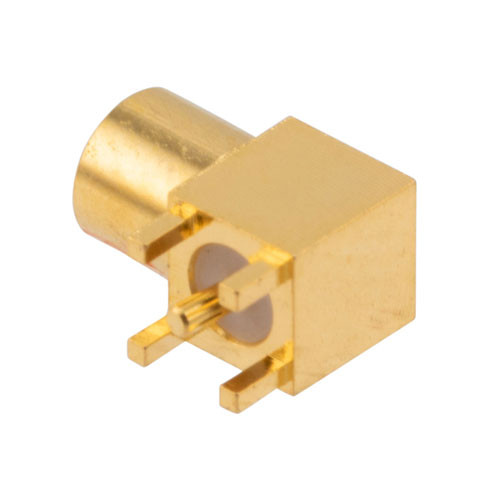

RF PCB Connector, MMCX Female right angle, DIP (Thru Hole)

RFPCB-MMCX-F-R-6G-6 MMCX jack PCB connector available from L-com has a 50 Ohm impedance. This RF connector is designed for a wide variety of Printed-Circuit Board (PCB) applications in RF and microwave systems. The MMCX connector is available in a 0.26-inch length, 0.14-inch width, and 0.21-inch height. The L-com MMCX jack PCB connector has a maximum VSWR of 1.5.

This RFPCB-MMCX-F-R-6G-6 MMCX connector has a beryllium copper contact. The MMCX jack connector uses solder as an attachment method. This MMCX jack connector with 50 Ohm impedance has a weight of 0.02 lbs. The RFPCB-MMCX-F-R-6G-6 threaded RF connector has a right angle body style and a high-quality construction.

Features

• Max Frequency 6 GHz
• VSWR 1.5:1 Max
• Gold Plated BeCu contact

Application

• PCB Applications
• General Purpose Test

Downloads:

• Datasheets
• 2D Drawing (.pdf)
