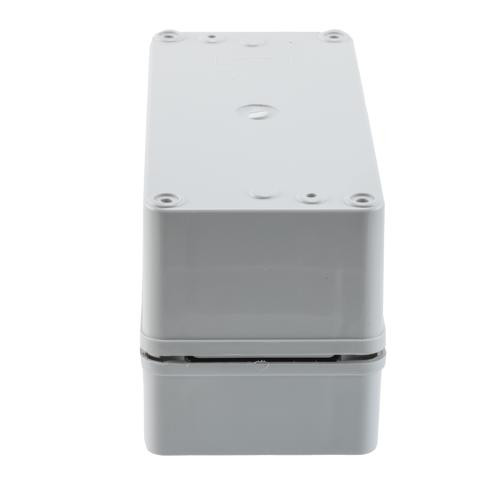

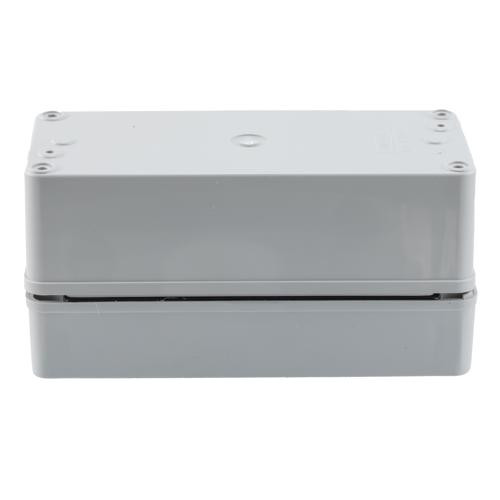

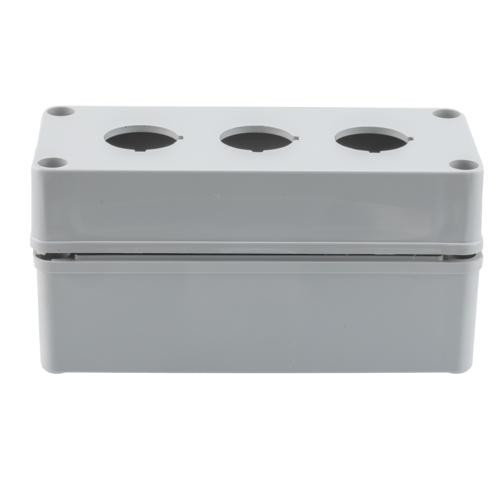

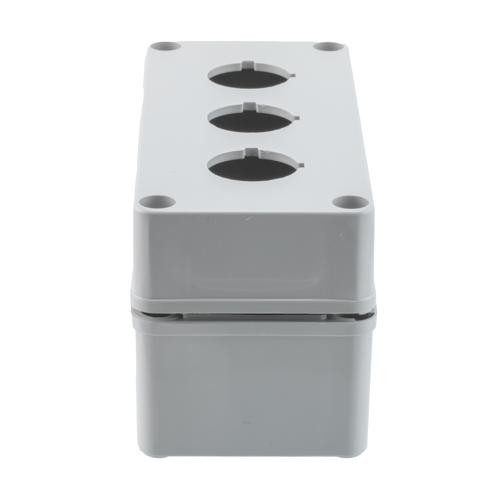

Pushbutton Enclosure, 3 Hole, 30.5mm, Polyester, Gray

L-com’s LC-PCG-0818-1 A3 is a control switch box enclosure for 30.5mm devices, intended for both indoor and outdoor use as a pushbutton and operator switch enclosure. This enclosure is made from molded polyester material with a matching cover and is easily punched, cut, or drilled. The switch box enclosure is pre-drilled with 3 hole options.

This gray enclosure provides outstanding insulation and protection where equipment may be rinsed or be very wet. The switch box enclosure is available in 80mm width, 180mm height and 85mm depth. L-com’s LC-PCG-0818-1 A3 switch box enclosure is impact and corrosion resistant and is perfect for harsh environments. This 3 hole pushbutton enclosure is suitable for industrial, municipal, medical, campus pushbutton or pilot switch enclosure applications.

We serve the petrochemical, metallurgy, mining, wastewater treatment, automotive, oil and gas industries.

Features

• Indoor and Outdoor installations
• Hot and corrosive environments
• Operator or pilot type switch installations
• Holes in the cover allow easy installation of push buttons, switches, and indicating lights

Application

• Pre-drilled for operator or pilot type switches
• Available in 1,2,3 or 4 hole options
• This product is pre-processed with 22.5mm or 30.5mm holes
• PC/PBT Blend (polycarbonate / polyester blend) is a thermoplastic alloy of amorphous polycarbonate and semi-crystalline polyester. PC/PBT provides a combination of chemical resistance, temperature resistance, and mechanical strength
• Temperature Range: Continuous -40 to +75. Short Time C -40 to +100 C
• UL, CE, RoHS Compliant
• Material Grade Type 4X, Ingress Protection IP67, strength grade IK 08

Downloads:

• Datasheets
• 2D Drawing (.pdf)
• 3D CAD Model (.step)
