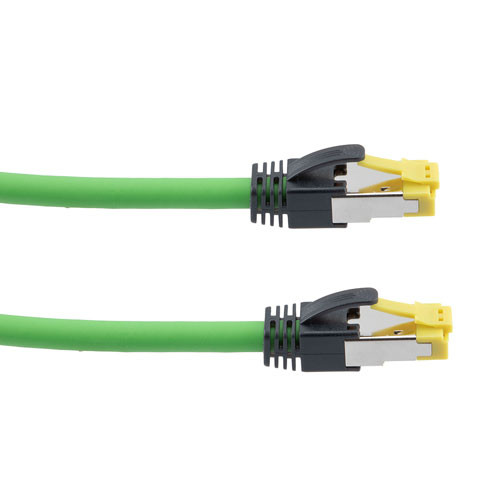

Profinet Type B/C Cat5e 2-Pair RJ45-RJ45 Cable SF/UTP Double Shielded 22AWG Stranded Drag Chain High Flex Industrial Outdoor PUR Green 10M

L-com's TRGPC506-10M is a green-colored 2-pair Profinet cable assembly that is available in 10-meter length. The Category 5e-rated cable is built with 22AWG stranded high-flex, drag chain rated conductors for type B or C Profinet applications. This Ethernet cable has a high-retention RJ45 connector boot on both ends that takes 200N pulling pressure to disengage from the plug. The TRGPC506-10M Cat5e cable from L-com has SF/UTP double-shielded construction that provides maximum protection from data-destroying EMI and RFI interference.

This Profinet type B/C cable features an outdoor and industrial rated PUR (polyurethane) jacket that is oil, ultra-violet (UV), and moisture resistant. This cable assembly is flex, drag chain, and torsion rated for up to 2 million cycles. This Category 5e-rated Ethernet cable can operate at temperatures ranging from -40 to 80 deg C. L-com's 2-pair Profinet cable is suitable for outdoor or industrial networks, PoE use, harsh environments such as oil and gas, transportation, and high-flex and continuous motion applications.

Features

• 2-pair Profinet cable assembly with 22AWG stranded high flex, drag chain rated conductors for Type B or C Profinet applications with Category 5e Ethernet compliance
• PUR jacket is Outdoor & Industrial rated with Oil, UV, Moisture resistances
• SF/UTP double shielded construction to reduce or eliminate EMI/RFI
• Flex, drag chain and torsion rated for up to 2 million cycles
• High retention RJ45 boot takes 200N to disengage from the plug

Application

• Outdoor or Industrial networks
• PoE use
• Harsh Environments such as Oil and Gas
• High Flex and Continuous motion
• Transportation

Downloads:

• 2D Drawing (.pdf)
