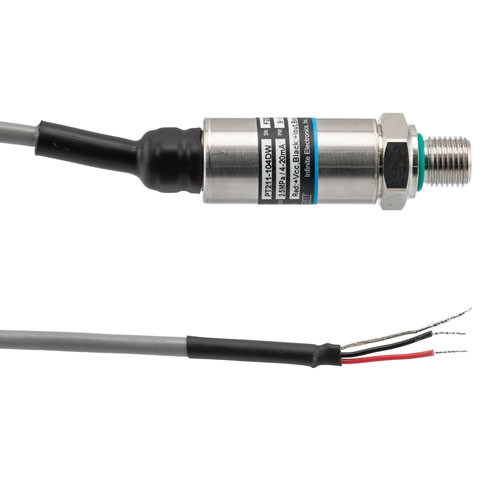

Pressure Sensor, 1 MPa, 4-20mA, G1/4, 1.5m cable

The PT211-102DW from L-com is a gauge-style pressure sensor with a 1 MPa maximum pressure range. This pressure sensor has a 4-20 mA output with 1.5 meter cable electric connection. This 1 MPa sensor is powered by DC voltage ranging from 9 to 30 VDC. This pressure sensor has an IP65 ingress protection rating. The PT211-102DW pressure sensor has a 1.5 meter cable with a G1/4 process connection. This pressure indicator has a stainless steel SS (17-4PH) housing.

This pressure sensor is suitable for hydraulic and pneumatic systems, industrial machinery, automatic testing systems, pump station, water treatment systems, and industrial process control applications. This pneumatic pressure sensor has a storage temperature ranging from -40 to +125 deg C. This pressure sensor operates at a temperature ranging from -40 to +85 deg C. This pneumatic sensor features an advanced micro-fused silicon strain gauge, strong RFI and EMI protection, efficient lightning protection, advanced digital temperature compensation, a wide working temperature range, high accuracy, high frequency response, and good long-term stability. The PT211-102DW from L-com has a compensated temperature range of -20 to +85 deg C. This pressure sensor has a long term stability of 0.1 % full scale and a pressure accuracy of ±0.5 % full scale.

Features

• Advanced Micro-fused Silicon Strain Gauge
• Efficient lightning protection
• Strong RFI&EMI protection
• Advanced digital temperature compensation
• Wide working temperature range
• High accuracy, high frequency response, and good long-term stability

Application

• Industrial process control
• Automatic testing systems
• Hydraulic and pneumatic systems
• Pump station and water treatment systems
• Industrial machinery
