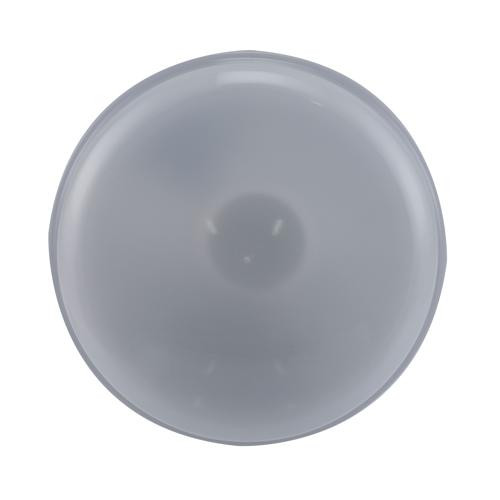

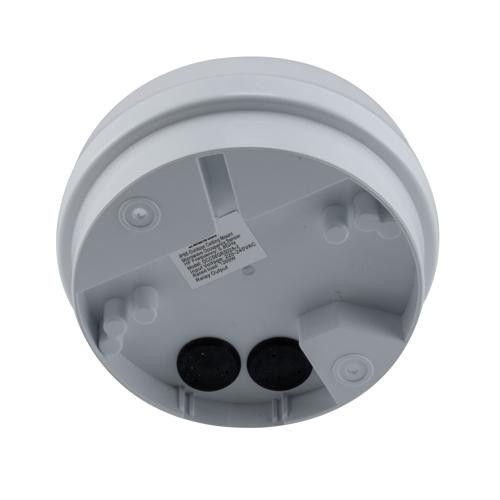

Outdoor Ceiling Mount Microwave Occupancy Sensor, IP65, 5.8 GHz, 220 - 240 VAC, 1200 W Relay Output

The L-com OCC58GRS02A-2 is an outdoor ceiling mount microwave occupancy sensor with a 1200 W typical current output. This microwave occupancy sensor has an AC power supply ranging from 220-240 VAC. This motion sensor has a typical power consumption of 0.5 W and a typical power frequency of 50/60 Hz. This loT sensor is suitable for smart buildings, smart homes, healthcare, lighting, and security applications. This occupancy sensors have a 5.8 GHz CW electric wave, ISM band HF system.

This microwave occupancy sensor can operate at a temperature ranging from -15 to +70 deg C. The rated load type for this 220-240 VAC microwave sensor is 1200 W. This occupancy sensor features a full 360-degree detection range, an integrated ambient light sensor, adjustable sensitivity and time delay, and low power consumption. This 1200 W microwave occupancy sensor has an overall length of 4.75 inches, a width of 4.75 inches, and a weight of 0.5 lbs. This occupancy sensor has an IP65 rating and a transmission power of <0.2mW.

The OCC58GRS02A-2 loT occupancy sensor from L-com has a detection range of 2-10 m. This microwave occupancy sensor has a 360 x 160 degree detection angle and an 8 sec to 12 min hold time. This motion sensors can be used to optimize space utilization, reduce energy consumption, increase safety and cleanliness, and offer convenient touchless control. All this sensors are manufactured with quality production processes and are 100% factory tested.

Features

• Full 360° Detection Range
• Integrated Ambient Light Sensor
• Adjustable Sensitivity and Time Delay
• Low Power Consumption

Application

• Smart Buildings
• Smart Homes
• Healthcare
• Lighting
• Security

Downloads:

• User Manual
• 2D Drawing (.pdf)
• 3D CAD Model (.step)
