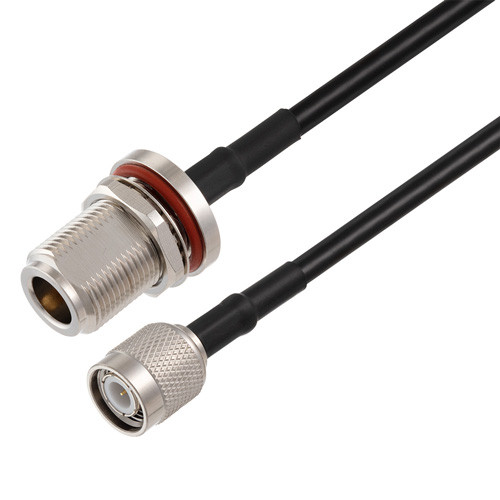

N Female Bulkhead to TNC Male Cable Assembly using RG58 Coax, 10 FT

These high-quality RF coax cable assemblies can be used for telecom, military / defense, laboratory test & measurement, industrial / commercial and many other applications. These RF coaxial cable assemblies are built with N bulkhead connection on one end and TNC connection on the other. This N to TNC cable from L-com has a female to male gender combination. This N female to TNC male coaxial assembly part number LCCA30691-FT10 can also be known as N jack to TNC plug cable assembly when using alternate gender names.

N jack to TNC plug cable assembly LCCA30691-FT10 is manufactured with a flexible coax. These flexible N to TNC cable assemblies use RG58 coax and are single shielded. Maximum frequency for these N to TNC F/M cables is 1 GHz. This product can also be called a TNC male to N female bulkhead cable assembly because it can be used in the opposite direction.

Features

• 50 Ohm RF (Radio Frequency) Transmission
• RG58 stranded center conductor enhances flexibility
• Same day shipping available
• Bulkhead design is ideal for panel mount applications
• Heat shrink strain relief for a highly durable RF cable assembly

Application

• RFID systems up to 1 GHz
• General Purpose Test and Measurements
• Wireless Infrastructure
• GPS Timing and telematics

Downloads:

• Datasheets
• 3D CAD Model (.step)
