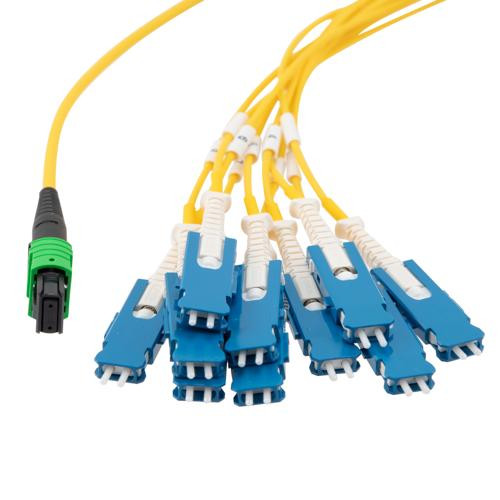

MPO APC w/o Pins to 10xSN (20 strand) UPC Cable Assembly, Single Mode, Riser Rated, 2 Meter

The L-com MPF-20S2-SNUR-02 is a 2 meter fiber optic cable using a 24 fiber Female MPO connector to 10x fan-out Senko SN® connectors. The SN® connector is a ceramic connector that can be utilized as a Base-8 trunk solution, a Base-2 patching interface, or as a Base-8 connection to next-gen 200G, 400G, and 800G transceivers. The MPF-20S2-SNUR-02 from L-com is designed for Single mode applications. The SN® connector uses the same 1.25mm ferrule as the LC industry standard connector with 3x the density.

With the reduced footprint of the SN® connector, up to 432 fibers can be present in a single rack unit patch panel. The L-com MPF-20S2-SNUR-02 can also be used to connect 4-lane pluggable optics such as QSFP-DD, or conventional single lane optics like SFP+. Additionally, Up to fthis SN® connectors can be plugged into QSFP-DD or OSFP transceivers and can be broken out into fthis different transceivers without the need for cassettes or fan-outs.

Features

• 2 Meter Single Mode MPO Female APC to 10x SN® UPC
• Meets IEC random mating Grade B
• Very Small Form Factor (VSFF) connector, 3x fiber cabling density over Duplex LC
• Unique push-pull boot for simple installation and removal
• Optimized for 400G data rates with QSFP-DD, OSFP and SFP-DD transceivers
• Up to 4x SN® connectors per transceiver
• Direct transceiver breakout in spine/leaf architectures
• Combines two 1.25mm ceramic ferrules
• Easy identification of the connector alignment key

Application

• High-density patching
• QSFP-DD, OSFP and SFP-DD transceiver links for higher data rates
• Hybrid Base-8 cable assemblies combining SN and MPO connector types
• Hyperscale, edge, enterprise and colocation data centers

Downloads:

• 2D Drawing (.pdf)
