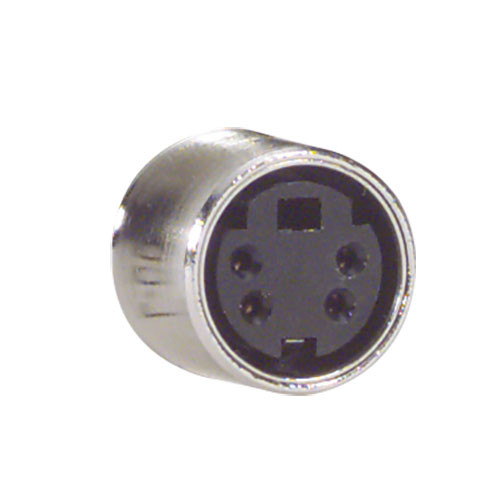

Mini Din 4 Female, Field Termination Connector

This field termination Mini DIN 4 Female connector offers a quick and easy way for field termination of SVHS style cable. This S-Video connector utilizes a D hole bulkhead panel mounting arrangement. The undercut PCB area provides a convenient area to secure a cable tie wrap resulting in a neat dressing for the terminated cable. The terminal block area is clearly marked making field termination foolproof.

Features

• Fastest and most reliable way to field terminate a Mini DIN 4 connector
• Field termination of a Mini DIN 4 SVHS connector
• Terminal block design provides quick and easy field termination
• Clearly marked terminal block makes termination foolproof
• Mounts to commonly used .5" circular or D style bulkhead openings

Application

• Home Entertainment
• TV to PC applications
• Video Projection

Downloads:

• Tips
• 2D Drawing (.pdf)
• 3D CAD Model (.step)
