M12 Sensor 5 Pin B Code Male Receptacle, IP68 IP69K Rated, 60V, 4A, PG9 Rear Panel Mount Style with 22AWG UL1061 PVC 0.2M Leads
M12 Sensor 5 Pin B Code Male Receptacle, IP68 IP69K Rated, 60V, 4A, PG9 Rear Panel Mount Style with 22AWG UL1061 PVC 0.2M Leads
M12 Sensor 5 Pin B Code Male Receptacle, IP68 IP69K Rated, 60V, 4A, PG9 Rear Panel Mount Style with 22AWG UL1061 PVC 0.2M Leads
M12 Sensor 5 Pin B Code Male Receptacle, IP68 IP69K Rated, 60V, 4A, PG9 Rear Panel Mount Style with 22AWG UL1061 PVC 0.2M Leads
M12 Sensor 5 Pin B Code Male Receptacle, IP68 IP69K Rated, 60V, 4A, PG9 Rear Panel Mount Style with 22AWG UL1061 PVC 0.2M Leads
M12 Sensor 5 Pin B Code Male Receptacle, IP68 IP69K Rated, 60V, 4A, PG9 Rear Panel Mount Style with 22AWG UL1061 PVC 0.2M Leads
M12 Sensor 5 Pin B Code Male Receptacle, IP68 IP69K Rated, 60V, 4A, PG9 Rear Panel Mount Style with 22AWG UL1061 PVC 0.2M Leads
M12 Sensor 5 Pin B Code Male Receptacle, IP68 IP69K Rated, 60V, 4A, PG9 Rear Panel Mount Style with 22AWG UL1061 PVC 0.2M Leads
M12 Sensor 5 Pin B Code Male Receptacle, IP68 IP69K Rated, 60V, 4A, PG9 Rear Panel Mount Style with 22AWG UL1061 PVC 0.2M Leads
M12 Sensor 5 Pin B Code Male Receptacle, IP68 IP69K Rated, 60V, 4A, PG9 Rear Panel Mount Style with 22AWG UL1061 PVC 0.2M Leads

M12 Sensor 5 Pin B Code Male Receptacle, IP68 IP69K Rated, 60V, 4A, PG9 Rear Panel Mount Style with 22AWG UL1061 PVC 0.2M Leads

$48.79
$46.35
{"without_tax":{"formatted":"$46.35","value":46.35,"currency":"USD"},"tax_label":"Tax","rrp_without_tax":{"formatted":"$48.79","value":48.79,"currency":"USD"},"saved":{"formatted":"$2.44","value":2.44,"currency":"USD"}}
(You save 5.00% )
SKU: REC-M125BM-PG9R-L
Lead Time (Days): 42
Weight: 0.035200 LBS
Country of Origin: CN
Schedule B: 8536698000
ECCN: EAR99
Adding to cart… The item has been added
Description

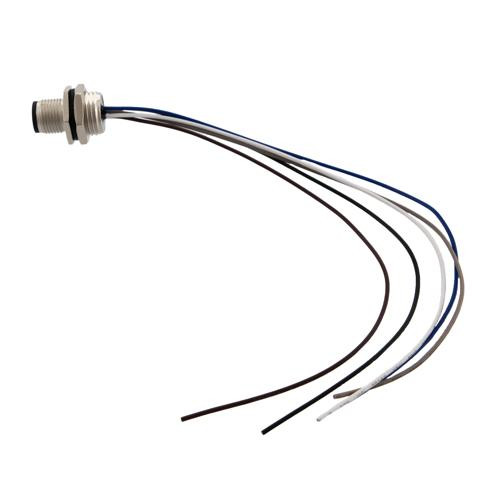

The L-com REC-M125BM-PG9R-L is a M12 sensor 5 pin B-code male receptacle that is suitable for I/O connectivity and modules, industrial control and factory automation, fieldbus systems like DeviceNet, Interbus and Profibus, sensor and actuators, and industrial networking devices. This B-code receptacle has a bulkhead rear mount and a blunt cut UL1061 PVC 22AWG leads in length of 0.2 meters (7.8 inches). This data adapter is IP68 (1m/24hours) and IP69K rated when properly mated with a temperature range of -20 degrees C to +85 degrees C. The 5-position M12 receptacle comes with a PG9 mounting thread with rear mount style and has a maximum panel thickness of 4.5mm.

This REC-M125BM-PG9R-L bulkhead rear mount receptacle has a mounting nut outside of the panel. Front mounting styles have the mounting nut outside the panel and rear mounting styles have the mounting nut inside the panel. This B-code data adapter from L-com is designed ideally for applications of up to 4A, 60V, such as Fieldbus systems like DeviceNet, Interbus, and Profibus.

Features

  • M12 Sensor, 5 Position, B-Code Male Panel Mountable Receptacle
  • Blunt cut UL1061 PVC 22AWG leads in length of 0.2m (7.8")
  • IP68 (1m/24hours) and IP69K rated when properly mated with temperature range: -20°C to +85°C
  • PG9 mounting thread with Rear mounting style; max panel thickness: 4.5mm; front mounting style has the mounting nut outside the panel; rear mounting style has the mounting nut inside the panel
  • Fit for B code applications of up to 4A, 60V such as Fieldbus systems like DeviceNet, Interbus and Profibus

Application

  • I/O connectivity and modules
  • Industrial control and factory automation
  • Fieldbus systems like DeviceNet, Interbus and Profibus
  • Sensor and actuators
  • Industrial networking devices

Downloads:
