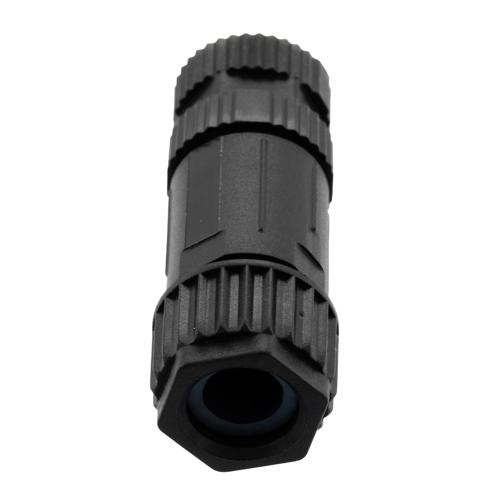

M12 AC Power 4 Pin S-Code Female Field Termination Connector, IP67, Plastic Nut, Fits 16-20AWG and 8-10mm Cable, 630V, 12A, Screw-In, Black

The L-com M12PFT4SF is a 4-pin S-code field termination connector that is suitable for AC motors, Power distribution units (PDUs) and power supply units, control cabinets, industrial control and factory automation, lighting and heating systems. This S-code connector has a M12 sensor and female gender along with a 4-position connector configuration. This field termination connector has an IP67 waterproof rating when properly installed and mated with a temperature range of -40 to 105 deg C.

This 4-position M12 connector is built to fit 16 to 20AWG conductor range wire and 8 to 10mm OD range cable. The M12PFT4SF from L-com comes with a screw in type attachment and does not require any special tools for installation. This black S-code field termination connector is designed ideally for AC power S-code applications of up to 12A, 630V.

Features

• M12 AC Power, 4 Position, S-Code Female Field Termination Connector
• Fit for 16 to 20AWG conductor range and 8.0 to 10.0mm OD range
• Screw in type; no special tools are required for installation; light weight plastic nut for tough but economical connector that will not stress your sensitive equipment and applications
• IP67 waterproof rating when properly installed and mated with a temp range of -40° to +105°C
• Fit for AC Power S code applications of up to 12A, 630V

Application

• AC Motors
• Power distribution units (PDUs) and power supply units
• Control cabinets, industrial control and factory automation
• Lighting systems
• Heating systems

Downloads:

• 2D Drawing (.pdf)
• 3D CAD Model (.step)
