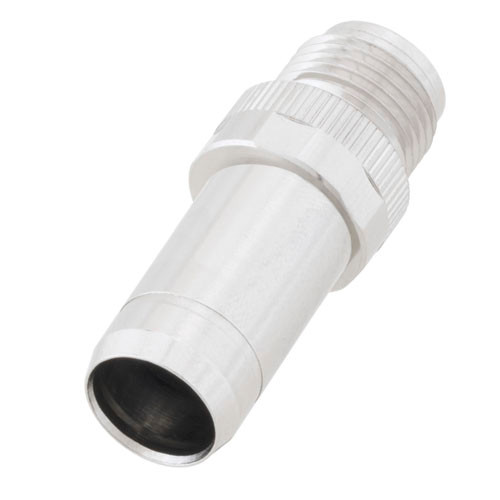

M12 8 Position X-code Mold Connector, Male, Shielded

M12 mold connectors with solder cups are now available from L-com. These connectors are appropriate to direct solder to cable and can be over-molded or heat-shrinked. Available in male or female in 8 Position A-code, 4 Position D-Code and 8 Position X-code. The D and X-code connectors are rated for twisted pair or Ethernet applications while A-code is meant for straight wire use. All connectors are shielded and are IP67 or IP68 rated when properly terminated and mated.

Features

• Shield is nickel plate
• Suitable for up to Category 6a or Category 7, 10gig, 4 Pair Ethernet applications
• X-code temp range: -40° to 85°C
• Individually packaged
• X-code connectors are IP67 when mated properly and appropriately molded or shrinked

Application

• Industrial control and factory automation
• Industrial Ethernet
• I/O connectivity
• Installer, Engineer or Technician's kit
• Sensor and actuators

Downloads:

• 2D Drawing (.pdf)
• 3D CAD Model (.step)
