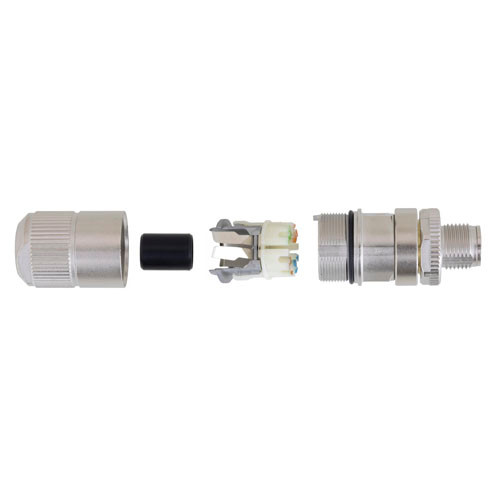

M12 8 Pin X-Code Male Shielded Field Termination Connector

Not sure what length of cable you need? Broke a connector in the field and need a quick replacement? L-com proudly presents new M12 Field Termination Connectors to meet those needs and more.

Fully shielded and rated for Category 6a, these connectors will allow you to terminate M12 cables in the field. They are suitable for terminating 22AWG to 26AWG conductors and require no special tools. The connectors are IP67 rated.

Features

• Fit for 26AWG to 22AWG stranded conductors or 22AWG to 24AWG solid conductors
• IP67 rated when properly mated
• M12 Shielded, 8 Position, X-Coded Field Termination Connector suitable for Category 6a applications
• Fit for cables with an overall OD of 0.22" (5.5mm) to 0.35" (8.8mm) and no special tools are required for termination (installation instructions come packaged with each part)
• Temp range: -40°C to +85°C; Recommended torque value: 0.6Nm

Application

• I/O connectivity
• Installer, Engineer or Technician's kit
• Sensor and actuators
• Industrial control and factory automation
• Industrial Ethernet including standards such as 10BASE-T, 100BASE-TX and 1000BASE-T

Downloads:

• 2D Drawing (.pdf)
• 3D CAD Model (.step)
