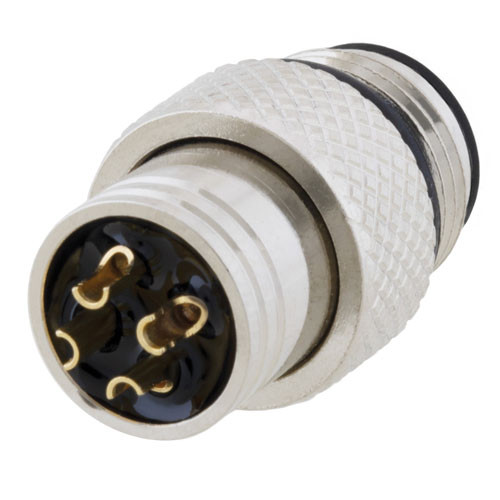

M12 4 Position D-code Mold Connector, Male, Shielded

M12 mold connectors with solder cups are now available from L-com. These connectors are appropriate to direct solder to cable and can be over-molded or heat-shrinked. Available in male or female in 8 Position A-code, 4 Position D-Code and 8 Position X-code. The D and X-code connectors are rated for twisted pair or Ethernet applications while A-code is meant for straight wire use. All connectors are shielded and are IP67 or IP68 rated when properly terminated and mated.

Features

• Individually packaged
• Shield is nickel plate
• D-code connectors are IP68 rated when mated properly and appropriately molded or shrinked
• D-code temp range: -40° to 85°C
• Suitable for up to Category 5e, 2 Pair Ethernet applications

Application

• Industrial control and factory automation
• Industrial Ethernet
• Sensor and actuators
• I/O connectivity
• Installer, Engineer or Technician's kit

Downloads:

• Datasheets
• 2D Drawing (.pdf)
• 3D CAD Model (.step)
