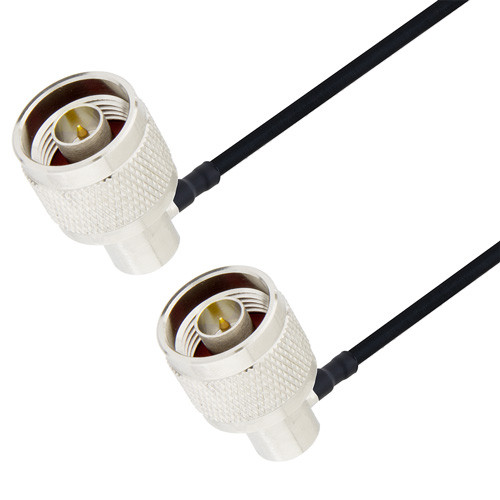

Low Loss N Male Right Angle to N Male Right Angle Cable Assembly using CA-400 Coax, 1 FT

Customers designed the L-com CC-4NMRNMR001 low loss N Male Right Angle to N Male Right Angle high running RF cable assembly with CA-400, which we now offer as a standard. This flexible 50 Ohm low loss cable is intended for use in laboratories, universities, communications, aerospace, and military defense sectors. This male-to-male cable assembly includes 50 Ohm male-type connectors on both ends with crimp attachments and gold-plated brass contacts. This RF cable is constructed with a solid copper clad aluminum center conductor and a PE dielectric, making it perfect for installers, manufacturers, and prototypes.

This black RF cable assembly features a PE jacket with a diameter of 0.405 inches. The L-com in-series RF cable assembly is 1 foot long, with a minimum bend radius of 1 inch for single bends and 4 inches for repeated bends. This 1-foot CA-400 cable assembly has an 85% velocity of propagation and a minimum RF shielding of 90 dB.

Downloads:

• 2D Drawing (.pdf)
