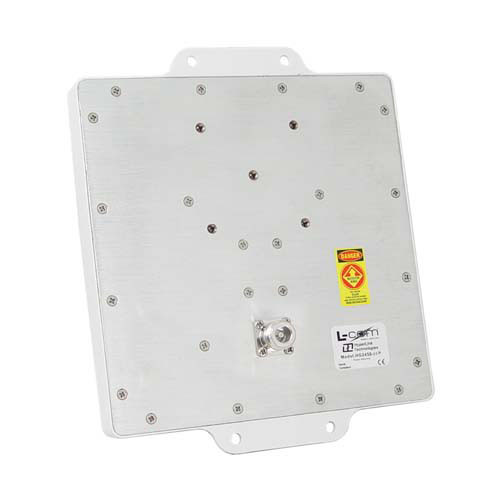

HyperLink Wireless Multi-Band 2.4/4.9-5.8 GHz Flat Panel Antenna Model: HG2458-11P

The Hyperlink HG2458-11P is a high performance multi-band directional flat patch antenna suitable for indoor and outdoor applications in the 2.4GHz (2400-2500 MHz) and 4.9-5.8 GHz (4900-5850 MHz) band. The multi-band design of this antenna eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications.

The HG2458-11P is lightweight and features a durable aesthetic UV-stable, UL flame rated white plastic radome which can also be painted to match the room or building structure. Integral mounting flanges ease installation. In addition, the optional HGX-PMT06 can be purchased for mounting the HG2458-11P to 1.2" to 2" diameter masts. This mounting kit attaches directly to the back of the antenna.

Features

• Durable UV-stable, UL flame rated radome with integral mounting flanges
• Optional tilt-and-swivel pole mount kit available
• 2.4 GHz and 4.9-5 GHz internal antennas coupled to a single feed
• Multi-band operation: 2.4 GHz and 4.9 to 5.8 GHz
• N-Female connector

Application

• Homeland security and public safety services
• Ideal for multi-band radios (802.11a/b/g/n)
• 2.4 GHz and 5.8 GHz wireless video systems
• 2.4/4.9/5.1/5.3/5.4/5.8 GHz Wireless LAN systems
• IEEE 802.11a/b/g/n and 802.11ac applications

Downloads:

• Datasheets
• 2D Drawing (.pdf)
• 3D CAD Model (.step)
