Highly Stable Pressure Sensor, 0-7MPa, Sealed Gauge, Compensated, 19mm diameter
Highly Stable Pressure Sensor, 0-7MPa, Sealed Gauge, Compensated, 19mm diameter

Highly Stable Pressure Sensor, 0-7MPa, Sealed Gauge, Compensated, 19mm diameter

$32.99
$31.34
{"without_tax":{"formatted":"$31.34","value":31.34,"currency":"USD"},"tax_label":"Tax","rrp_without_tax":{"formatted":"$32.99","value":32.99,"currency":"USD"},"saved":{"formatted":"$1.65","value":1.65,"currency":"USD"}}
(You save 5.00% )
SKU: PS781-14S0L1
Lead Time (Days): 42
Weight: 0.035000 LBS
Country of Origin: CN
Schedule B: 9026204000
ECCN: EAR99

Call (727) 345-3144 for Availability

Description

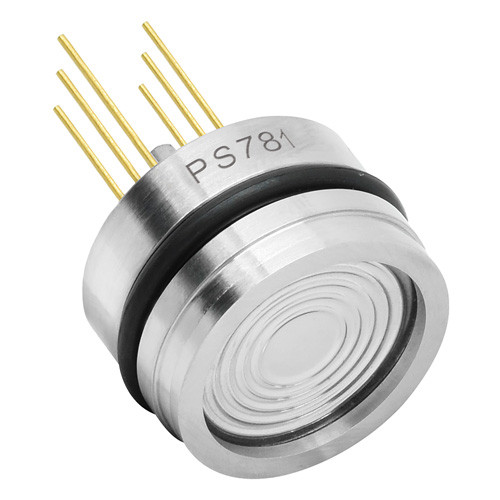

PS781-14S0L1 is a highly stable piezo-resistive pressure sensor with wide temperature compensation and zero correction. It contains a highly stable silicon die, stainless steel 316L housing with diameter 19mm. The measured pressure is transmitted onto the silicon die through the 316L diaphragm and inner media. This transforms the measured pressure into an electrical signal.

Features

  • 19mm diameter OEM pressure sensor
  • Pressure range: 0-7MPa
  • Isolated construction, enable to measure various media
  • Long-term stability ±0.1%FS/year
  • Wide temperature compensation

Application

  • Aviation and navigation systems
  • Cooling equipment and air conditioning systems
  • Gas and liquid pressure measurements
  • Industrial process controls
  • Level measurement

Downloads:
