Fire Rated N Male to NEX10 Male Low PIM Cable Using SPF-250 Coax Using Times Microwave Parts 3 Feet

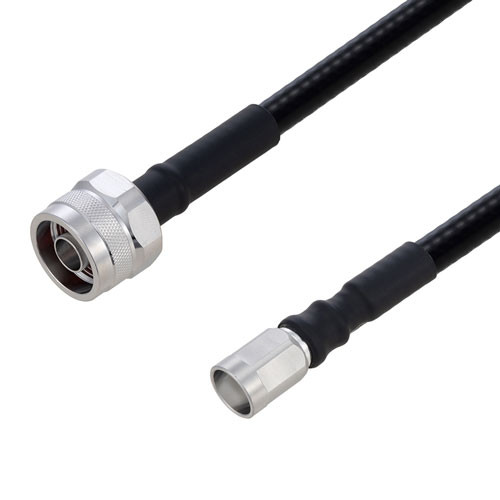

These high-quality RF coax cable assemblies can be used for telecom, military / defense, laboratory test & measurement, industrial / commercial and many other applications. These RF low PIM coaxial cable assemblies are built with type N connection on one end and NEX10 connection on the other. This low PIM type N to NEX10 cable from L-com has a male to male gender combination. Type N plug to NEX10 plug cable assembly LCCA31000-FT3 is manufactured with a corrugated coax. These corrugated type N to NEX10 cable assemblies use SPF-250 coax and are single shielded.

This low PIM radio frequency cord is wrapped in an FRPE jacket which has a 0.303 inch diameter and provides low loss with a maximum VSWR of 1.4:1. This low PIM flexible RF cable is 36 long, which offers maximum passive intermodulation performance of -160dBc. L-com’s type N to NEX10 Male/Male cable operates at a maximum frequency of 5.8 GHz. This product can also be called a low PIM NEX10 male to type N male cable assembly because it can be used in the opposite direction.

Features

• 100% Tested with PIM Test Results Marked on Cable
• Lightweight and Extremely Flexible
• Low Loss with Excellent VSWR
• IP67 (when mated)
• Using Times Microwave Components

Application

• Distributed Antenna Systems (DAS)
• Multi-Carrier Communication Systems
• PIM Testing

Downloads:

• Datasheets
• 3D CAD Model (.step)
