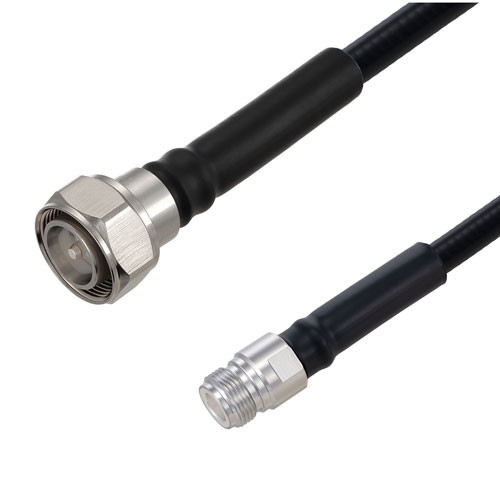

Fire Rated 4.3-10 Male to N Female Low PIM Cable Using SPF-375 Coax Using Times Microwave Parts 3 Meters

These high-quality RF coax cable assemblies can be used for telecom, military / defense, laboratory test & measurement, industrial / commercial and many other applications. These RF low PIM coaxial cable assemblies are built with 4.3-10 connection on one end and N connection on the other. This low PIM 4.3-10 to N cable from L-com has a male to female gender combination. This 4.3-10 male to N female coaxial assembly part number LCCA31006-M3 can also be known as low PIM 4.3-10 plug to N jack cable assembly when using alternate gender names.

4.3-10 plug to N jack cable assembly LCCA31006-M3 is manufactured with a corrugated coax. These corrugated 4.3-10 to N cable assemblies use SPF-375 coax and are single shielded. Maximum frequency for these 4.3-10 to N M/F cables is 6 GHz. This product can also be called a low PIM N female to 4.3-10 male cable assembly because it can be used in the opposite direction.

Features

• 100% Tested with PIM Test Results Marked on Cable
• Lightweight and Extremely Flexible
• Low Loss with Excellent VSWR
• IP67 (when mated)
• Using Times Microwave Components

Application

• Distributed Antenna Systems (DAS)
• Multi-Carrier Communication Systems
• PIM Testing

Downloads:

• Datasheets
• 3D CAD Model (.step)
